60TPH EDI Ultra Pure Water Treatment System
JFEDI-60T is a high-capacity EDI ultrapure water treatment system that uses an electric field and ion exchange technology for continuous deionization. It can produce stable ultrapure water with resistivity up to 15–18 MΩ·cm, while eliminating the need for chemical regeneration and enabling continuous 24/7 operation.
Detailed Data
Model: JFEDI-60TPH
Membrane Model: IP-LMX45
Capacity:60T/H
Recovery rate: 90-95%
Operating Pressure: 0.3-0.6MPa
Membrane size: 4040
Control type: Auto
Pre-shipment testing: Provide
Warranty: 12 months
Phone
+86 18001362005
sales@jufuwater.com
Product Description

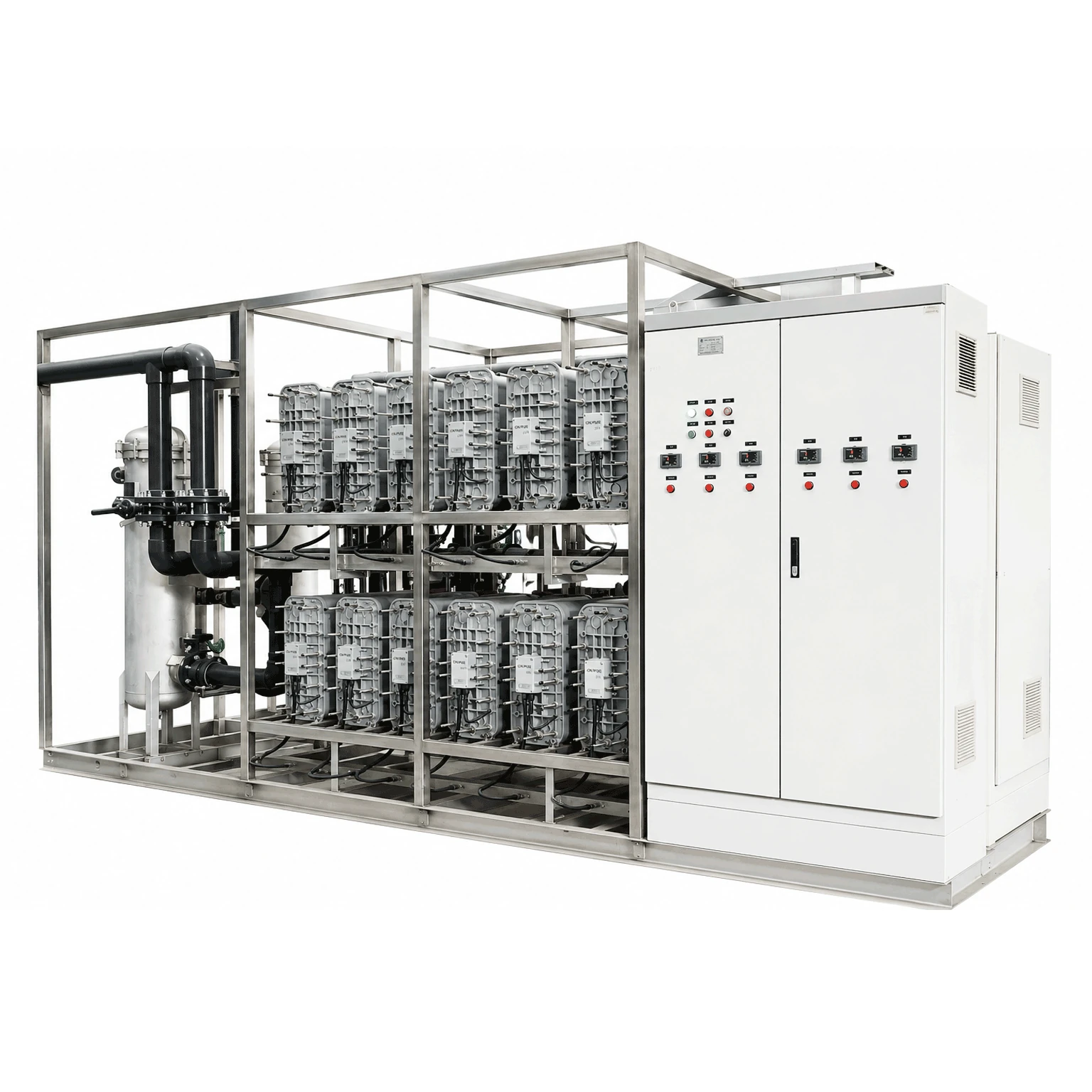

High-Capacity 60TPH EDI System
Designed for high-demand ultrapure water applications, JFEDI-60T provides a nominal production capacity of up to 60 tons per day for stable and continuous water supply.
Continuous Electro-Deionization Process
Uses a DC electric field to drive ions through ion exchange membranes, enabling continuous deionization without the periodic regeneration cycles required by conventional mixed-bed systems.
Electrochemical Resin Regeneration
Hydrogen ions and hydroxide ions generated through water dissociation continuously regenerate the ion exchange resin, maintaining stable deionization performance during operation.
Product Description
High-Capacity 60TPH EDI System
Designed for high-demand ultrapure water applications, JFEDI-60T provides a nominal production capacity of up to 60 tons per day for stable and continuous water supply.
Continuous Electro-Deionization Process
Uses a DC electric field to drive ions through ion exchange membranes, enabling continuous deionization without the periodic regeneration cycles required by conventional mixed-bed systems.
Electrochemical Resin Regeneration
Hydrogen ions and hydroxide ions generated through water dissociation continuously regenerate the ion exchange resin, maintaining stable deionization performance during operation.
Product Advantages
Why choose our EDI systems?
Here’s how we deliver more value to your business.
High Water Recovery up to 90–95%
The system can achieve a water recovery rate of approximately 90–95%, helping maximize purified water production while minimizing concentrate discharge.
Stable Ion Removal Performance
The combined action of ion exchange resin, selective membranes, and electric fields provides continuous removal of dissolved ionic contaminants from the feed water.

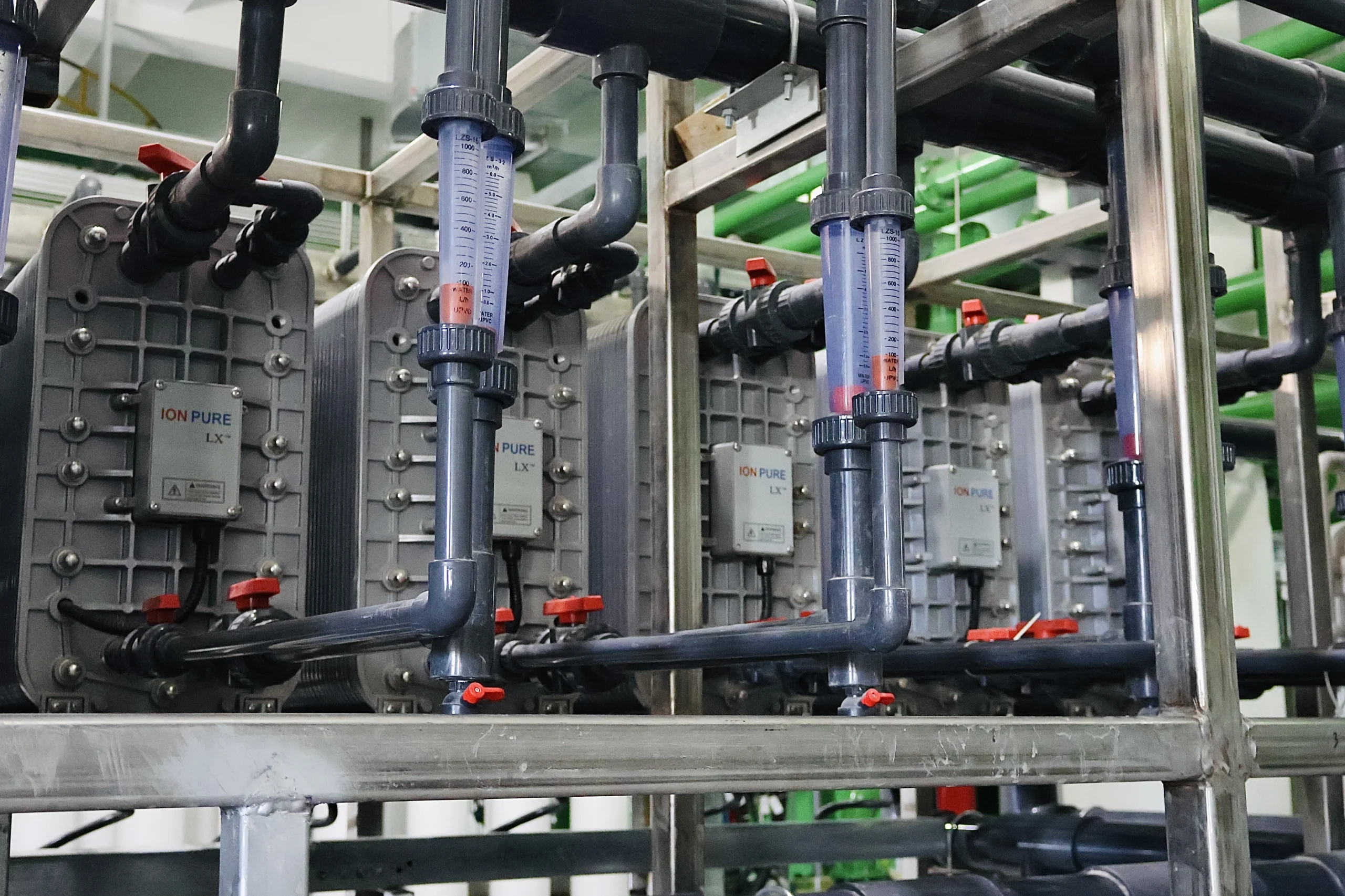

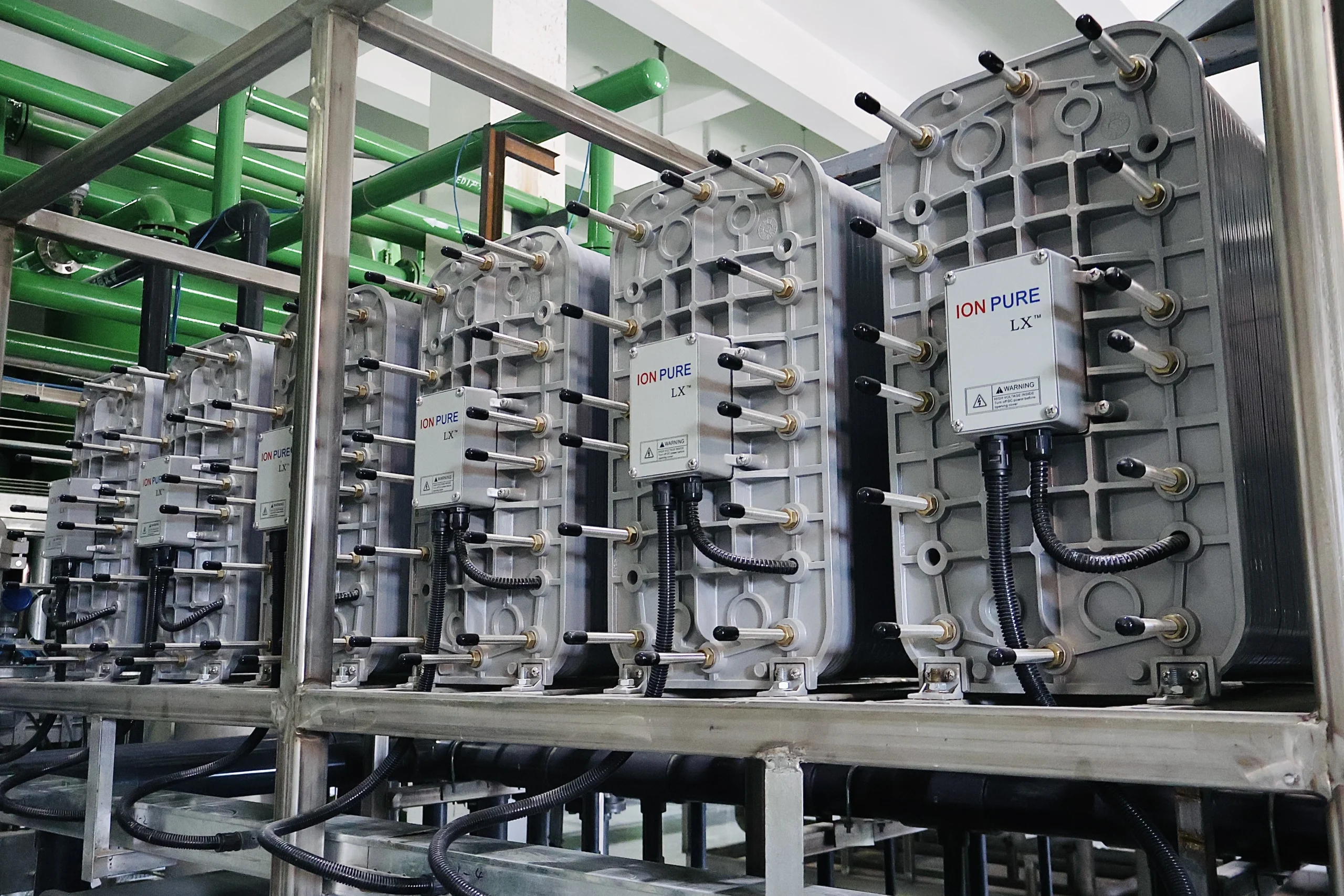

Alternating Membrane Stack Structure
The EDI module consists of alternating cation exchange membranes, anion exchange membranes, and ion exchange resin, forming precisely separated dilute and concentrate compartments.

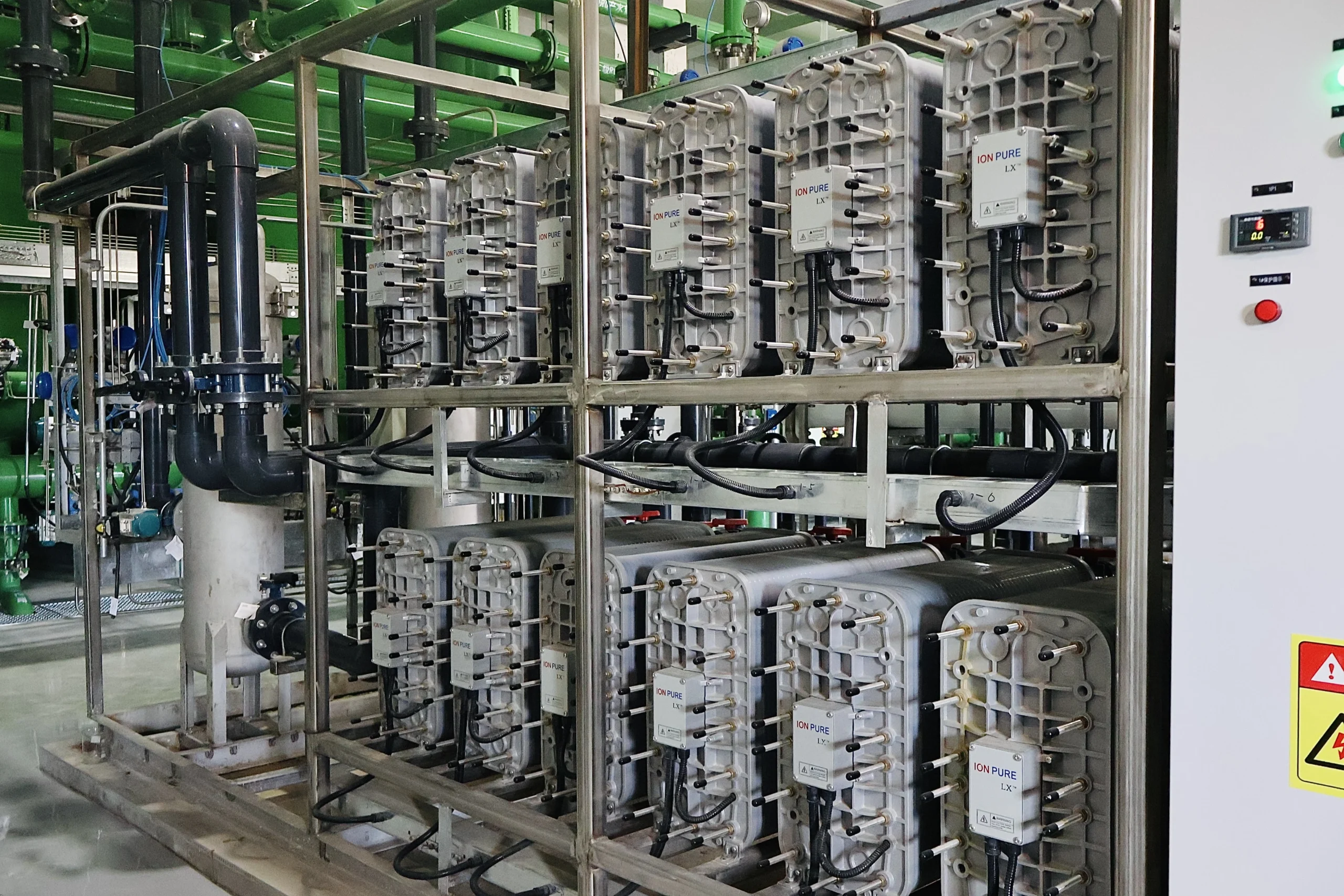

24/7 Continuous Water Production
Designed for continuous operation, JFEDI-60T can supply ultrapure water around the clock without scheduled chemical regeneration downtime.

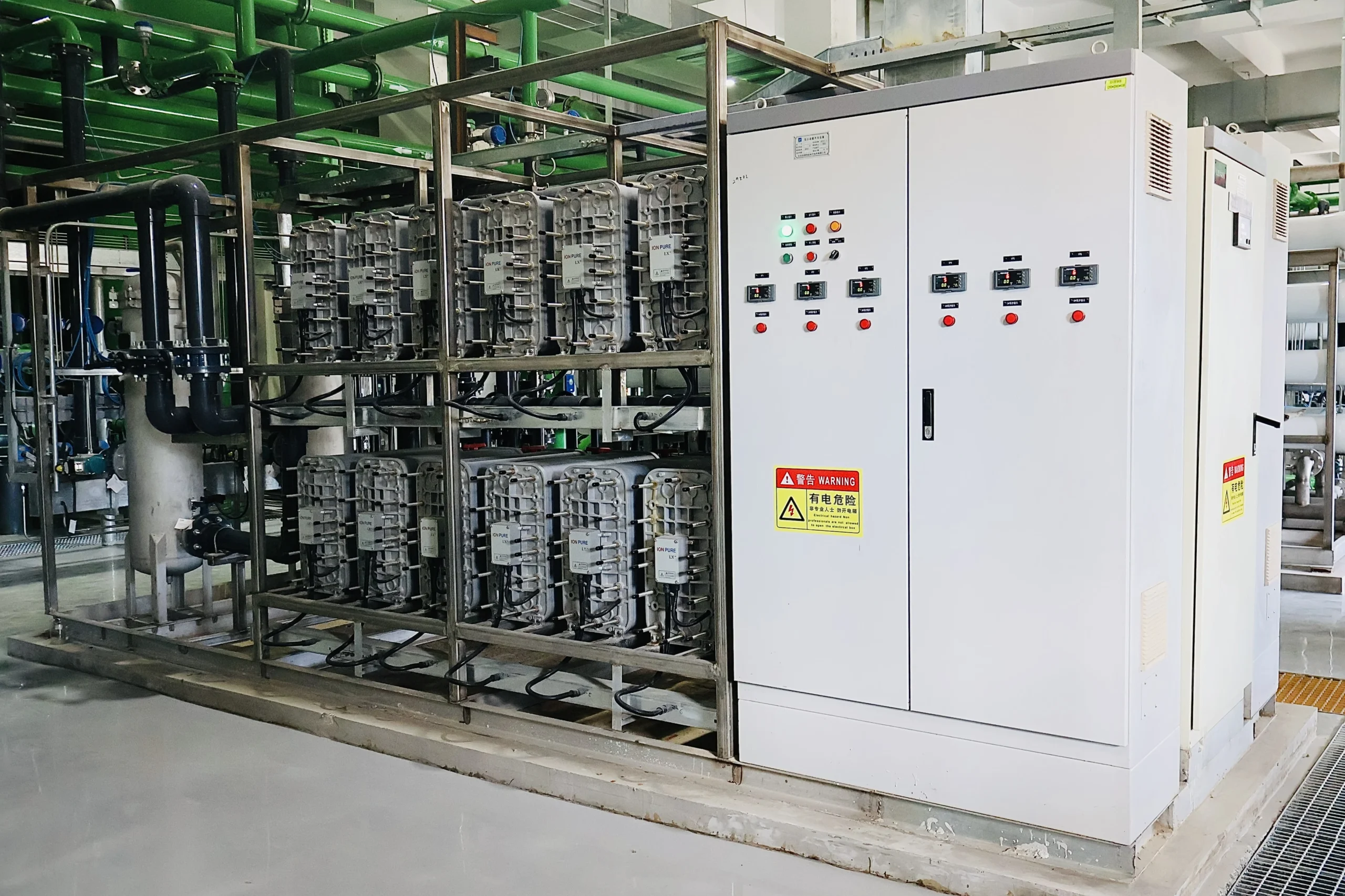

An integrated control system enables automated operation and monitoring, reducing manual intervention and simplifying daily system management.
Contact UsBy eliminating conventional resin regeneration procedures and associated chemical operations, the EDI process can simplify routine maintenance and operation.
Contact UsJFEDI-60T can be integrated downstream of a reverse osmosis system as a polishing and deionization stage for applications requiring consistently high-purity water.
Contact UsSuitable for applications requiring stable ultrapure water quality, including electronics, laboratories, pharmaceuticals, power generation, and other industrial high-purity water processes.

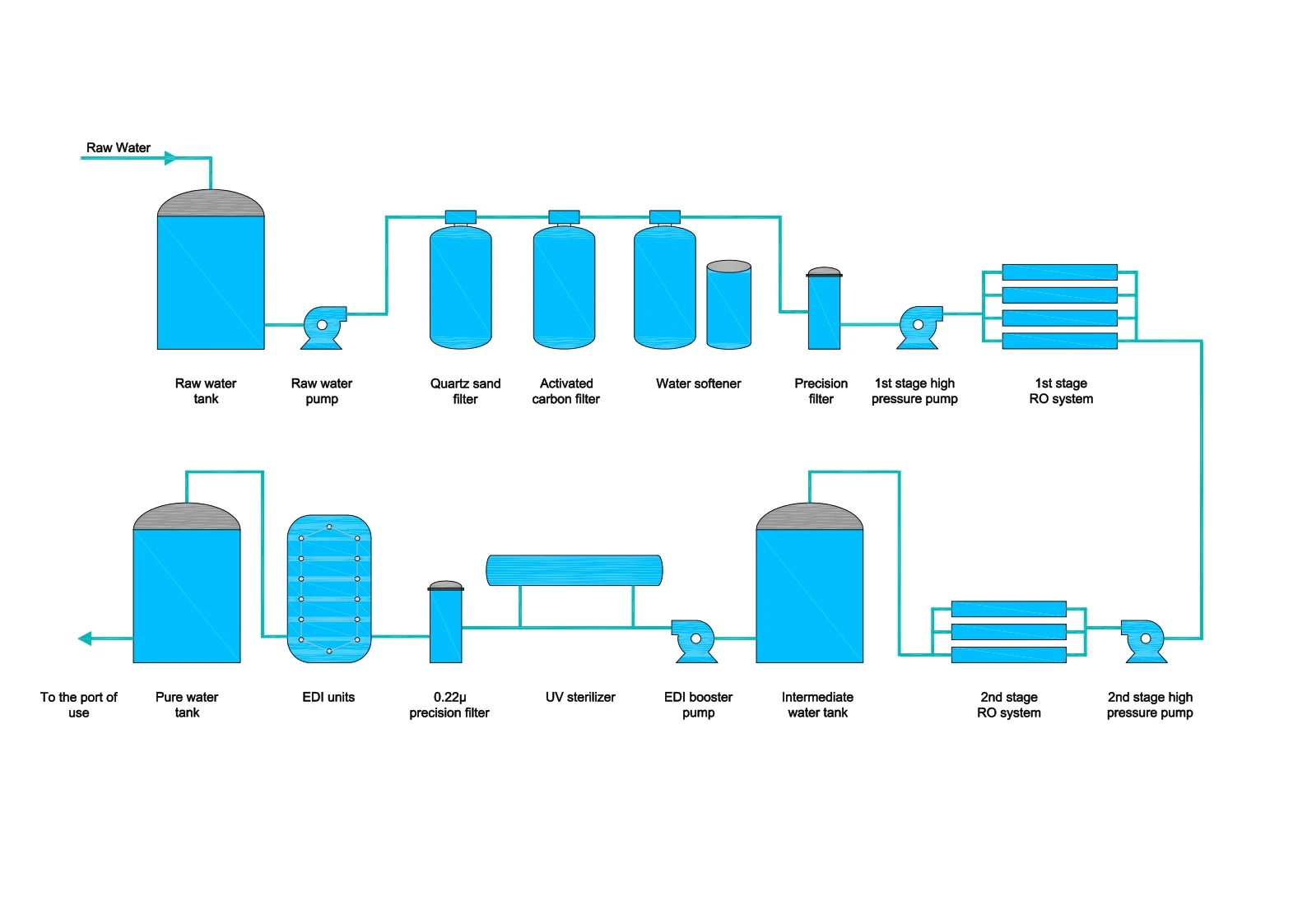

Contact UsWork Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFEDI-60TPH | |||
| Producing Capacity | 60T/H | Membrane Element Model | IP-LMX45Z | |
| Recovery Rate | 90-95% | Operating Voltage | DC 0-300V | |
| Operating Pressure | 0.3-0.6MPa | |||
| Product Water Resistivity | ≥15MΩ.cm | Operating Current | 1-6A | |
| Silica (SiO2) Removal Rate | 90-99% | Control Type | PLC Control | |
| Feed Water Quality | Feedwater conductivity ≤10 μS/cm; pH 4–11; Total hardness <1.0 ppm; Iron <0.01 ppm | |||
| Features | Specifically designed for industrial applications, the IONPURE LX-Z industrial-grade module utilizes Continuous Electrodeionization (CEDI) technology to produce high-purity water. IONPURE modules provide a highly reliable supply of high-quality, high-purity water to the power generation, HPI/CPI, and general electronics industries, without the need for regeneration downtime. | |||
RO System Maintenance & Consumables Replacement Guide
Filter Media
Quartz sand, activated carbon and resin are essential filter media for RO pretreatment systems. They effectively remove suspended solids, chlorine and hardness ions. Recommended replacement period: every 18-24 months.
RO Membrane
High-performance RO membranes provide efficient desalination and purification by removing dissolved salts and contaminants. Proper maintenance ensures stable water quality and extends membrane service life. Recommended replacement: every 1-2 years.
Chemical Dosing
Professional dosing chemicals protect RO membranes by preventing scaling, fouling, and biological contamination, improving system efficiency and extending membrane service life.
RO System Maintenance & Consumables Replacement Guide
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
