EDI Ultra Pure Water Treatment System
EDI Ultra Pure Water Treatment System combines ion exchange technology and electricity-driven purification to produce high-purity water continuously. It is widely used in pharmaceutical, electronics, laboratory and industrial applications requiring ultrapure water.
Detailed Data
Brand: JUFU
ISO9001 & CE certified
Pure water type: Ultra-pure water
Pre-shipment testing: Provided
Vessel: FRP
Installation guidance: Online Video meeting
Control type: Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description
Eco-friendly,say goodbye to acids and alkalis once and for all
This regeneration process uses electricity and requires absolutely no hydrochloric acid or caustic soda.
Continuous operation with high and consistent water quality
With continuous online operation, the ultrapure water quality fully meets the demands of high-tech industries such as electronics, pharmaceuticals, and high-pressure boilers.
Lower operating costs
By removing pollutants from the water, ultrafiltration systems help minimize environmental impact and protect the ecosystems surrounding the golf course.
Product Description
Eco-friendly,say goodbye to acids and alkalis once and for all
This regeneration process uses electricity and requires absolutely no hydrochloric acid or caustic soda.
Continuous operation with high and consistent water quality
With continuous online operation, the ultrapure water quality fully meets the demands of high-tech industries such as electronics, pharmaceuticals, and high-pressure boilers.
Lower operating costs
By removing pollutants from the water, ultrafiltration systems help minimize environmental impact and protect the ecosystems surrounding the golf course.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Easy to use
The system is automatically controlled by a PLC and features a simple control panel.
Eco-Friendly, Stress-Free
There are no issues with neutralizing and discharging acidic or alkaline wastewater, making it easy to pass environmental inspections and eliminating the risk of fines or production shutdowns due to wastewater exceeding regulatory limits.
Stable and Reliable
EDI delivers water continuously 24 hours a day, ensuring stable water quality and completely preventing any decline in product yield caused by fluctuations in water quality.
Cost Savings
Saves on acid/alkali procurement, transportation, storage, labor, and wastewater treatment costs.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
When water flows through the freshwater chamber, the cations (such as Na⁺, Ca²⁺) and anions (such as Cl⁻, SO₄²⁻) are adsorbed by the cation and anion exchange resins, respectively.
Contact UsDriven by an external DC electric field, the adsorbed cations migrate through the cation-exchange membrane toward the cathode (negative electrode) and enter the concentrate chamber.
Contact UsThis is the “brain” of the entire system, responsible for coordinating all automated processes.
Contact UsSee Our System in Action

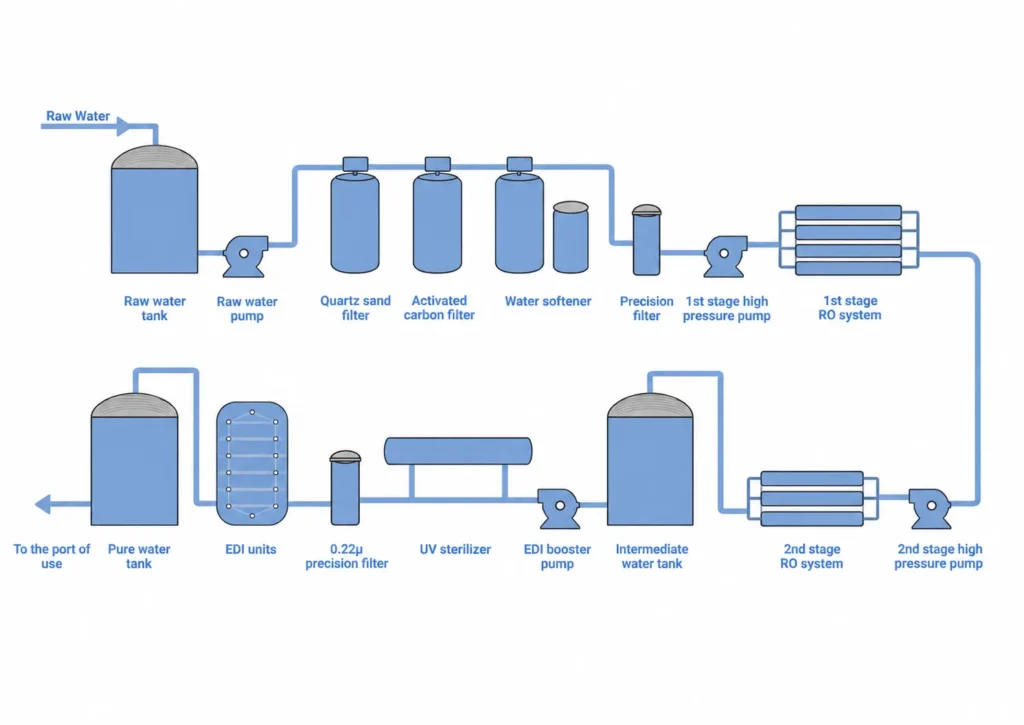

Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Brand | JUFU | |||
| Certification | ISO9001 & CE | Heavy Metals | < 0.01 ppm | |
| Inlet Conductivity | < 10 μS/cm | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Inlet Pressure | 0.15 - 0.4 MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Recovery Rate | 80% - 95% | Sodium Ion in Produced Water | ＜3ppb | |
| SDI | < 0.2 - 5 | Silicon Dioxide Removal Rate | 99% | |
| Feed Water Quality | TOC< 0.5 ppm, SiO₂< 0.5 ppm,Residual chlorine < 0.02–0.05 ppm | |||
| Features | Produces ultra-stable, high-quality ultrapure water; features highly continuous operation; is environmentally friendly; and has low total operating costs | |||
UF System Consumables Replacement Guide &Functionality Extensions
High-Purity Water Output
Delivers consistent ultrapure water quality with low conductivity and excellent ion removal, ideal for pharmaceutical, laboratory, electronics, and other high-purity water applications.
Low Chemical Consumption
As the core consumable component of ultrafiltration equipment, it plays a vital role in intercepting bacteria, viruses, colloids and suspended solids. Should your equipment’s water production rate decrease or the transmembrane pressure difference increase, the membrane assembly should be replaced promptly; the replacement cycle is 2–3 years.
Smart & Easy Control
Integrated PLC control and real-time monitoring enable precise system management, simplified operation, and reliable performance with minimal routine maintenance.
UF System Consumables Replacement Guide &Functionality Extensions
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
