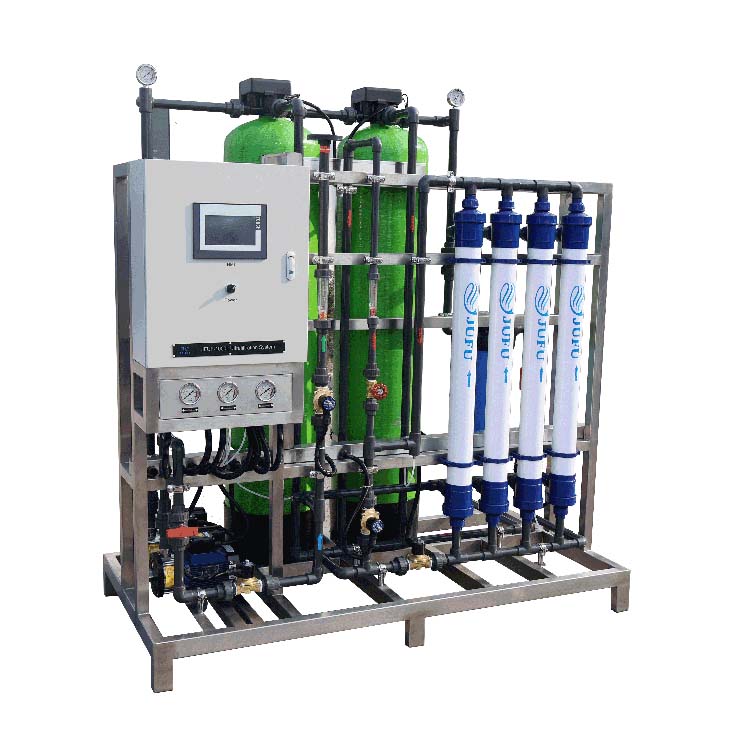

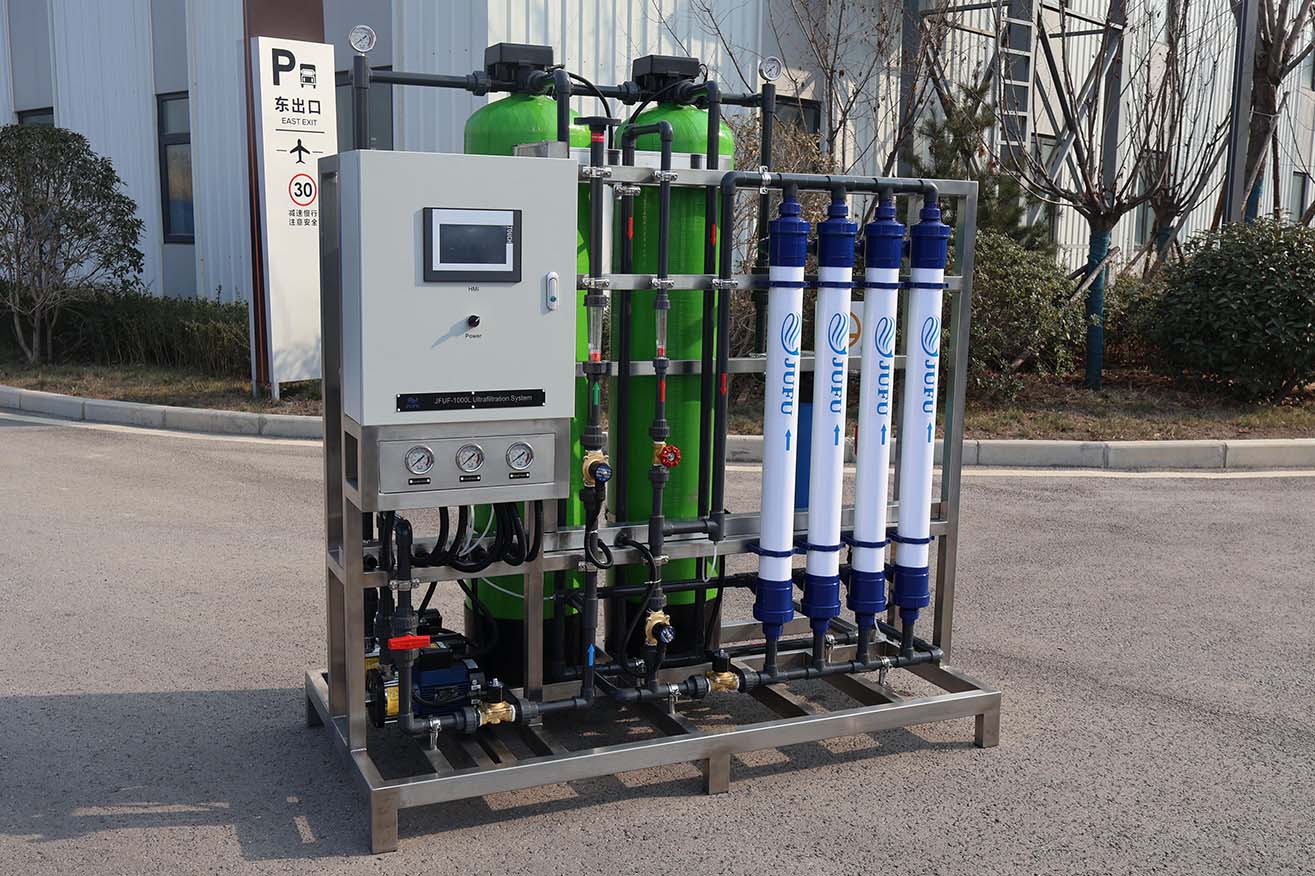

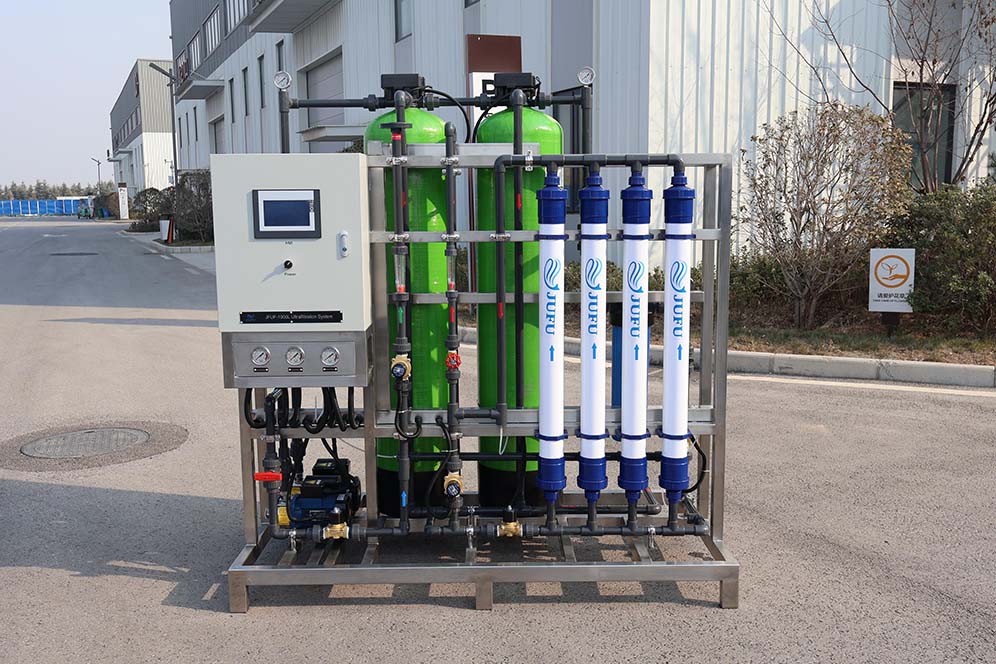

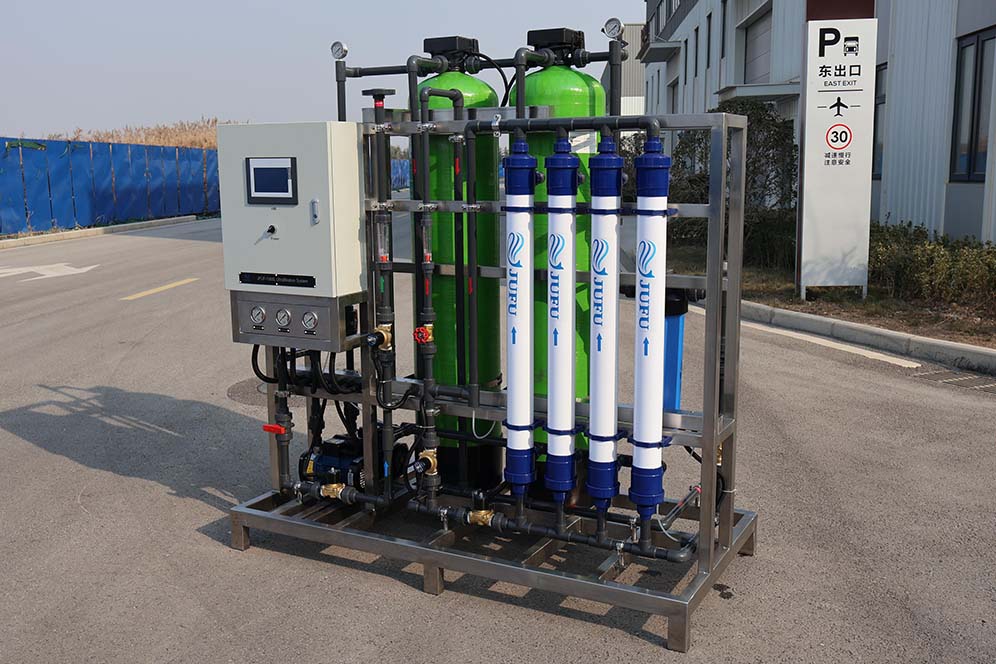

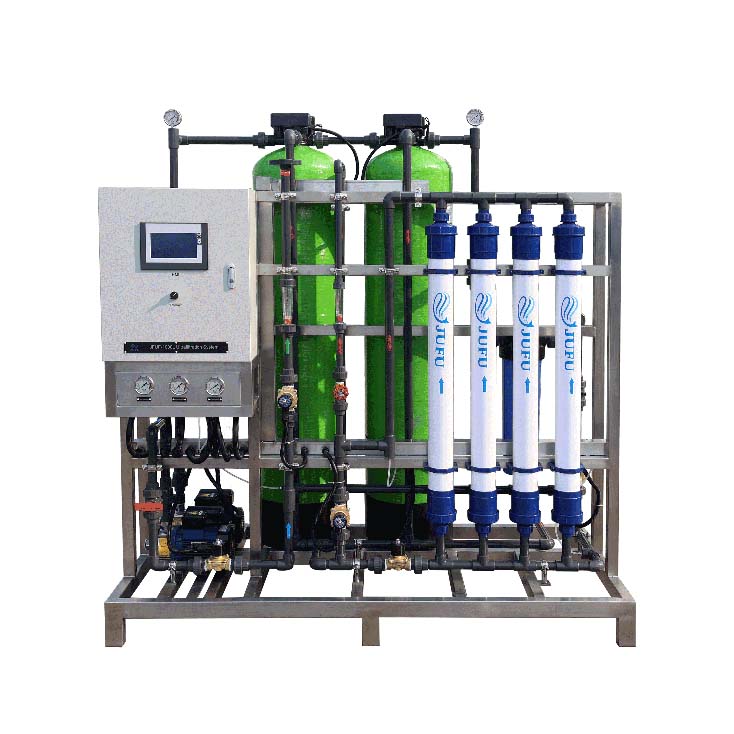

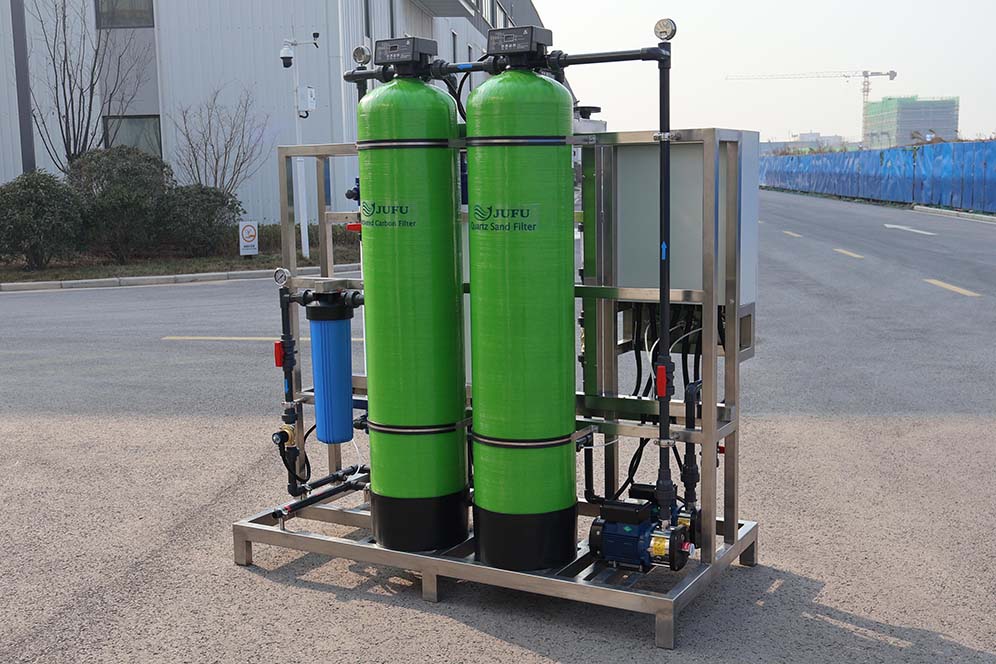

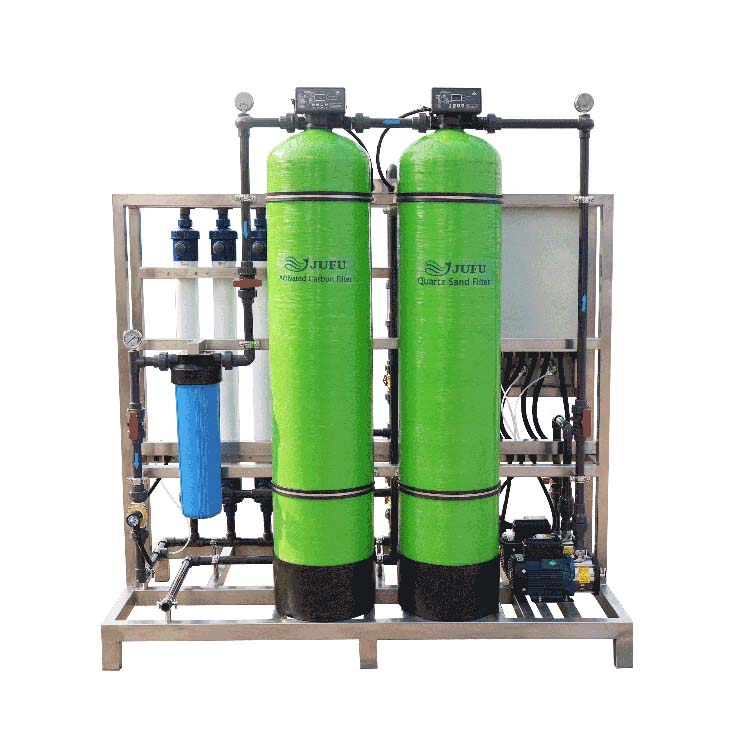

1000LPH PLC Touch Control Ultrafiltration Water Filtration System
JFUF-1000L PLC Touch Control Ultrafiltration System features intelligent automation and easy operation. The UF water filtration system provides accurate monitoring, stable performance and efficient treatment for industrial water purification projects.
Detailed Data
Model: JFUF-1000L
ISO9001 & CE certified
Capacity: 1000liter/hour
Recovery rate: 95%
UF Membrane: PVC/PVDF
Membrane size: 4040
Control type: Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description
Mild conditions; widely used
Preservation of active substances: Ultrafiltration is particularly well-suited to the processing of heat-sensitive substances, such as pharmaceuticals, enzymes and fruit juices, as it does not cause them to denature or lose their activity. It has a wide range of applications.
High-efficiency separation, excellent water quality
Ultrafiltration membranes have a filtration precision ranging from 0.001 to 0.1 micrometres and are effective at removing harmful substances from water. The treated water is clear and consistent in quality, and offers a high level of microbiological safety.
Cost-effective and energy-efficient
Extremely low energy consumption, high water recovery rate and low maintenance costs
Product Description
Mild conditions; widely used
Preservation of active substances: Ultrafiltration is particularly well-suited to the processing of heat-sensitive substances, such as pharmaceuticals, enzymes and fruit juices, as it does not cause them to denature or lose their activity. It has a wide range of applications.
High-efficiency separation, excellent water quality
Ultrafiltration membranes have a filtration precision ranging from 0.001 to 0.1 micrometres and are effective at removing harmful substances from water. The treated water is clear and consistent in quality, and offers a high level of microbiological safety.
Cost-effective and energy-efficient
Extremely low energy consumption, high water recovery rate and low maintenance costs
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Precision Filtration Technology
Superior removal of suspended solids, bacteria, and impurities.
Smart Automatic Control
Fully automated operation with intelligent monitoring and protection.
Rock-Solid Water Quality Stability
Consistent permeate quality under various operating conditions.
Industrial-Grade Reliability
Built for continuous operation in demanding water treatment applications.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Product Deatails

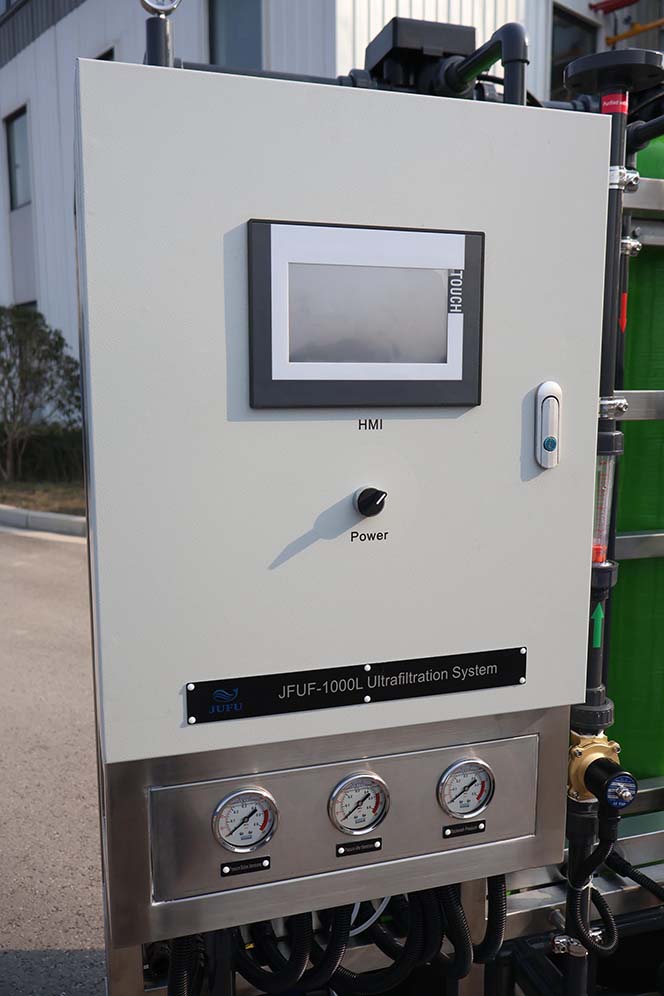

PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process

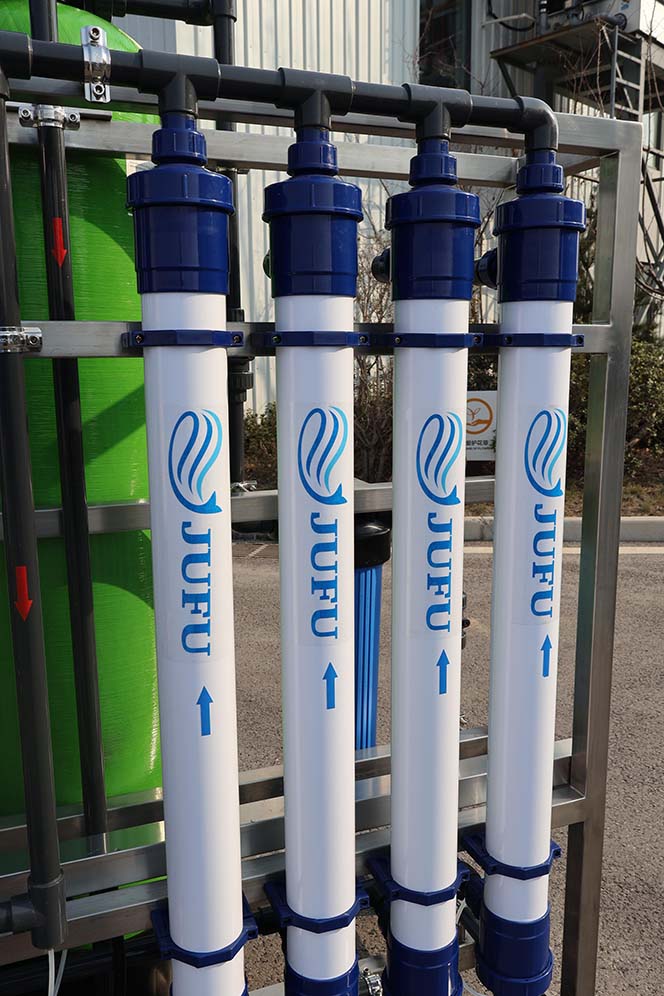

Outstanding Performance UF Membrane
Leading brand with outstanding performance UF membrane
Picky Selection of Key components
We only choose leading quality components to 100% guarantee the product quality
Product Deatails
A complex engineering system that converts seawater, which is not suitable for direct consumption, into freshwater that meets the required standards. Its primary objective is to significantly reduce the salinity of seawater from approximately 35,000 mg/L to below 500 mg/L.
Contact UsBy passing the water through two reverse osmosis membranes, water of a higher purity than that achieved by single-stage reverse osmosis is obtained, with a total desalination rate exceeding 99.5 per cent. The conductivity of the produced water can be maintained at a stable level below 3 μS/cm, and may even reach levels of 1–10 μS/cm.
Contact UsA modular solution that integrates a complete water treatment system into a standard shipping container, offering flexibility and scalability, and allowing for relocation and reuse as required.
Contact UsIt tackles the problem of ‘limescale’, protects equipment and pipework, enhances quality of life, improves industrial processes, and offers potential health benefits.
Contact UsSee Our System in Action
Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFUF-1000L | |||
| Producing Capacity | 1000L/H | UF membrane | 4” | |
| Recovery Rate | 95% | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Desalination Rate | 99.50% | Power Consumption | 0.5kW | |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control | |
| Feed Water Quality | Turbidity＜50NTU Free Chlorine Concentration<1.0mg/L SS＜50mg/L | |||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | |||
RO System Maintenance & Consumables Replacement Guide

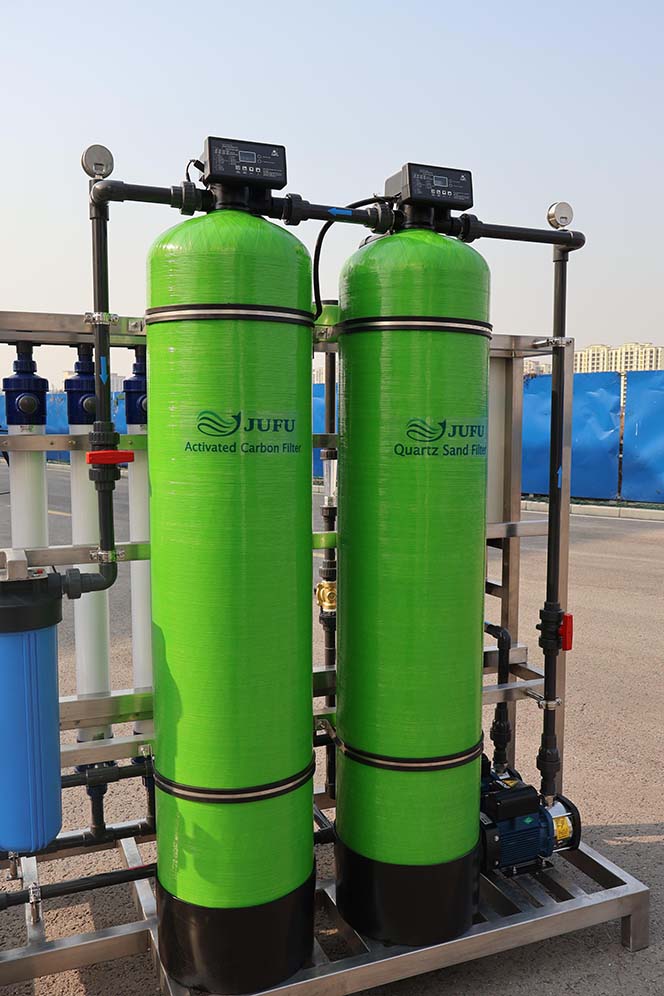

Filter Media
Quartz sand, activated carbon and resin are essential filter media for RO pretreatment systems. They effectively remove suspended solids, chlorine and hardness ions. Recommended replacement period: every 18-24 months.
UF Membrane
As the core consumable component of ultrafiltration equipment, it plays a vital role in intercepting bacteria, viruses, colloids and suspended solids. Should your equipment’s water production rate decrease or the transmembrane pressure difference increase, the membrane assembly should be replaced promptly; the replacement cycle is 2–3 years.
Ultraviolet Steriliser（Optional）
With a UV transmittance of over 95%, every drop of water is evenly irradiated, achieving a sterilization efficiency of 99.99%.The lamp needs to be replaced annually.
RO System Maintenance & Consumables Replacement Guide
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
