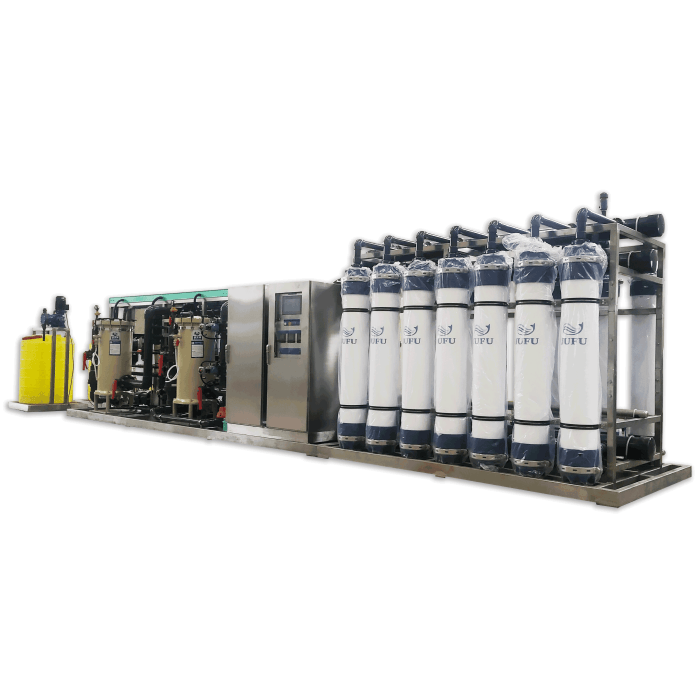

40TPH Industrial Ultrafiltration System
JFUF-40T 40TPH Industrial Ultrafiltration System is designed for large-capacity water purification projects. With high-performance UF membranes, it effectively removes particles and microorganisms while providing continuous and reliable filtration performance.
Detailed Data
Model: JFUF-40T
ISO9001 & CE certified
Capacity: 40ton/hour
Membrane type: PVDF
Recovery rate: 95%
Membrane size: 10”
Control type: Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description
Chemical Stability
The primary advantage of PVDF ultrafiltration membranes is their excellent chemical stability. The membrane is resistant to most acids, alkalis and organic solvents, allowing it to remain stable and functional in extreme chemical processing environments.
Mechanical Strength
Another outstanding advantage of PVDF UF membranes is their high mechanical strength. This means that the membrane is able to resist physical damage, including tearing, abrasion and pressure changes over a long period of time, thus ensuring its long-term reliability.
Filtration Efficiency
PVDF ultrafiltration membranes provide highly efficient filtration performance. It effectively removes suspended particles, bacteria and viruses from water while maintaining a high water flux, which is essential for improving filtration efficiency and saving energy consumption.
Product Description
Chemical Stability
The primary advantage of PVDF ultrafiltration membranes is their excellent chemical stability. The membrane is resistant to most acids, alkalis and organic solvents, allowing it to remain stable and functional in extreme chemical processing environments.
Mechanical Strength
Another outstanding advantage of PVDF UF membranes is their high mechanical strength. This means that the membrane is able to resist physical damage, including tearing, abrasion and pressure changes over a long period of time, thus ensuring its long-term reliability.
Filtration Efficiency
PVDF ultrafiltration membranes provide highly efficient filtration performance. It effectively removes suspended particles, bacteria and viruses from water while maintaining a high water flux, which is essential for improving filtration efficiency and saving energy consumption.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Contamination Resistance
The contamination resistance of PVDF membranes is another major advantage. The surface nature of the material makes it less susceptible to contaminant adsorption, which reduces the frequency and difficulty of cleaning and improves the service life of the membrane.
Economy and Application
The economy of PVDF UF membranes is one of the reasons for their popularity, considering their durability and low maintenance requirements. In addition, the wide range of applications for this membrane, from water treatment to the food industry, is further proof of its suitability and effectiveness in different situations.
Fully automatic PLC control
No dedicated personnel required; only periodic inspections are needed, significantly reducing labor costs.
Industrial-Grade Reliability
Built for continuous operation in demanding water treatment applications.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？

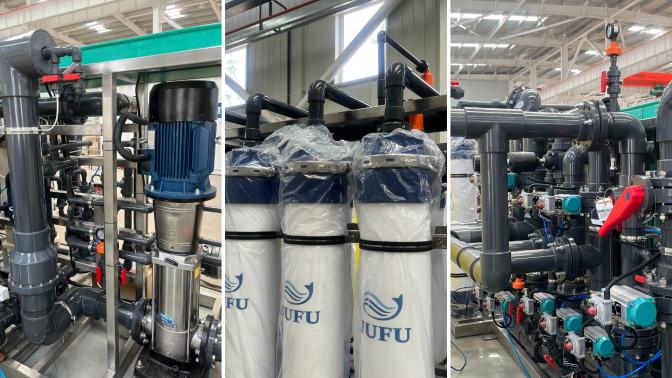

Product Deatails
PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process

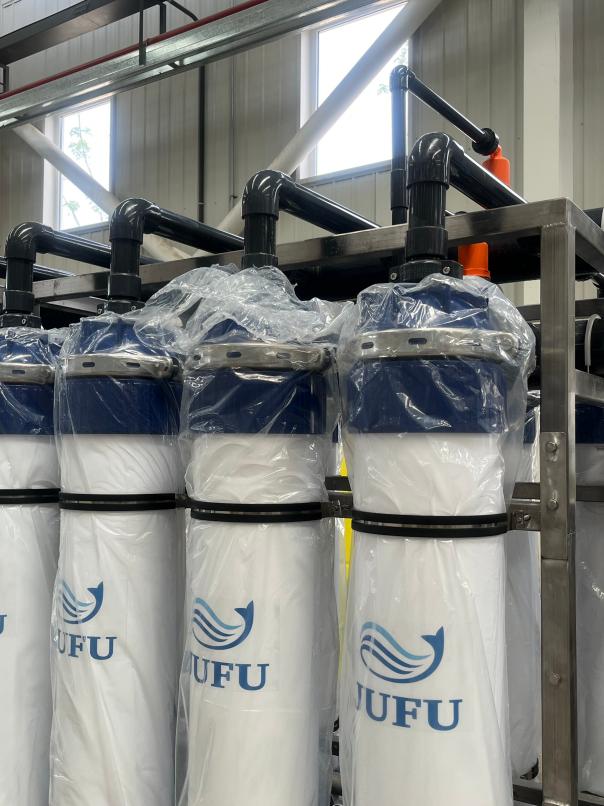

Outstanding Performance UF Membrane
Leading brand with outstanding performance UF membrane
Picky Selection of Key components
We only choose leading quality components to 100% guarantee the product quality
Product Deatails
Exceptional corrosion resistance, outstanding mechanical properties, good machinability and an attractive appearance.
Contact UsHigh reliability, high flexibility, ease of use, ease of maintenance, compact size and low power consumption: in particular, small PLCs are compact and easy to install
Contact UsTouchscreens and PLCs (programmable logic controllers) are the perfect pairing in industrial automation; they exchange data via communication protocols.
Contact UsAn automated technology that cleans the internal surfaces of equipment such as tanks and pipes automatically by circulating cleaning fluid through sealed pipes, without the need for manual dismantling of the equipment.
Contact UsSee Our System in Action
Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFUF-40T | |||
| Producing Capacity | 40T/H | UF membrane | 10” | |
| Recovery Rate | ≥95% | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Membrane Type | Outside-In | Power Consumption | 30kW | |
| Filtration Accuracy | 0.1micron | Control Type | PLC control | |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | |||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | |||
UF System Consumables Replacement Guide &Functionality Extensions
Filter Media
Quartz sand, activated carbon and resin are essential filter media for RO pretreatment systems. They effectively remove suspended solids, chlorine and hardness ions. Recommended replacement period: every 18-24 months.
UF Membrane
As the core consumable component of ultrafiltration equipment, it plays a vital role in intercepting bacteria, viruses, colloids and suspended solids. Should your equipment’s water production rate decrease or the transmembrane pressure difference increase, the membrane assembly should be replaced promptly; the replacement cycle is 2–3 years.
Chemical Dosing
Professional dosing chemicals protect UF membranes by preventing scaling, fouling, and biological contamination, improving system efficiency and extending membrane service life.
UF System Consumables Replacement Guide &Functionality Extensions
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
