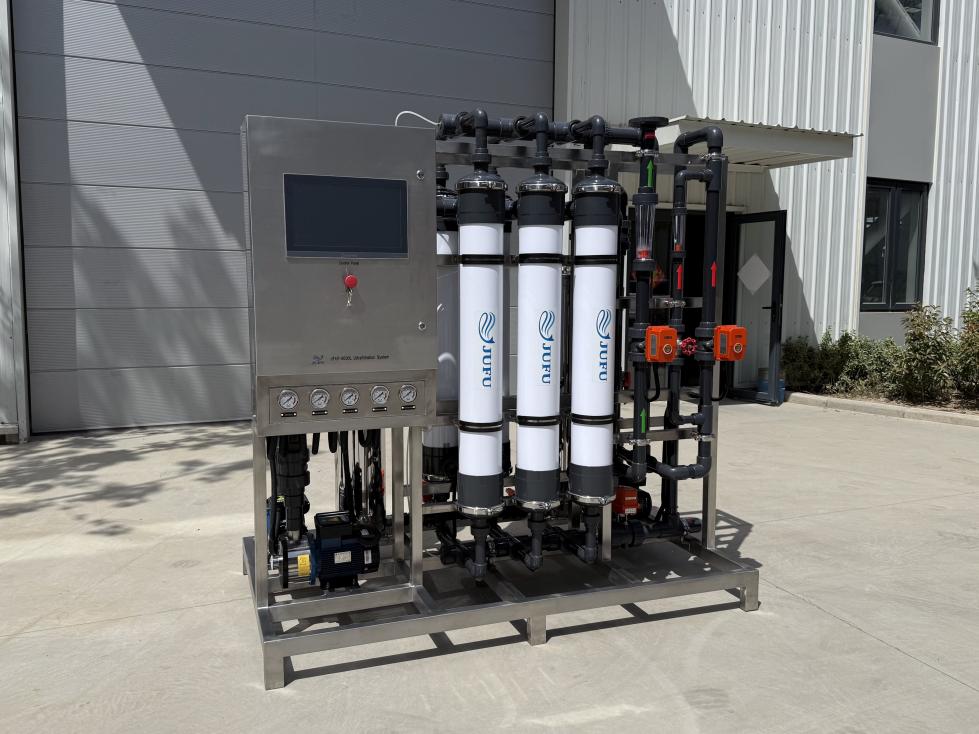

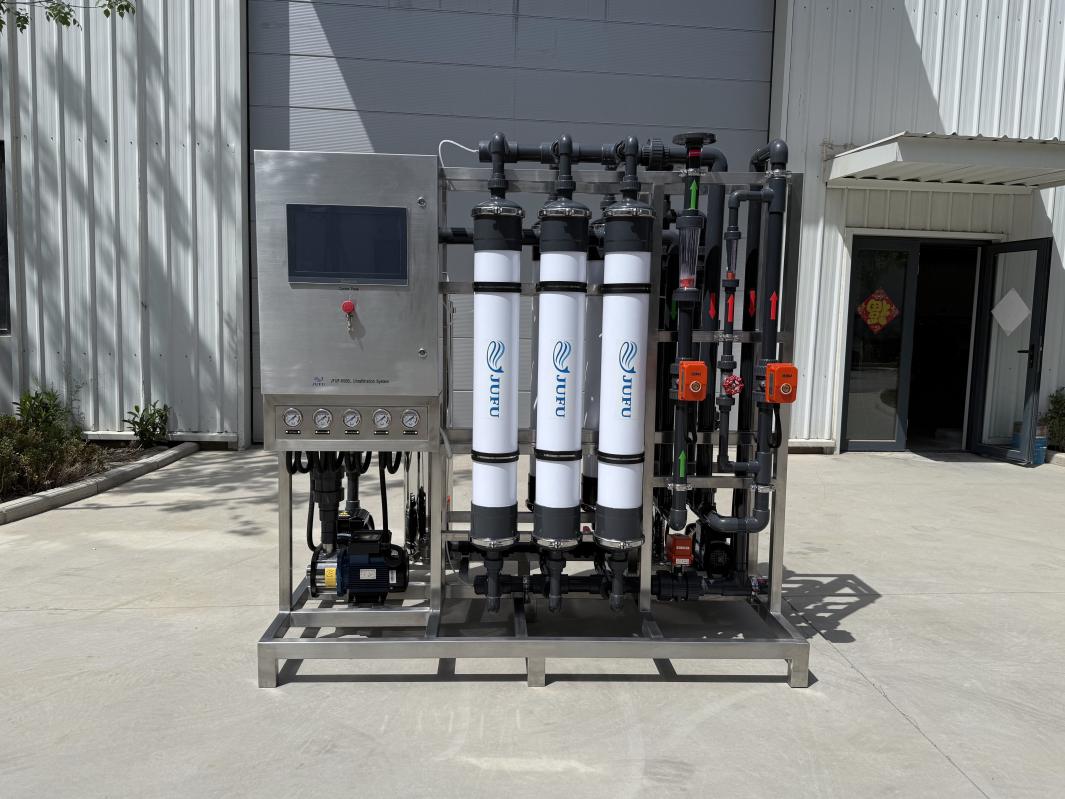

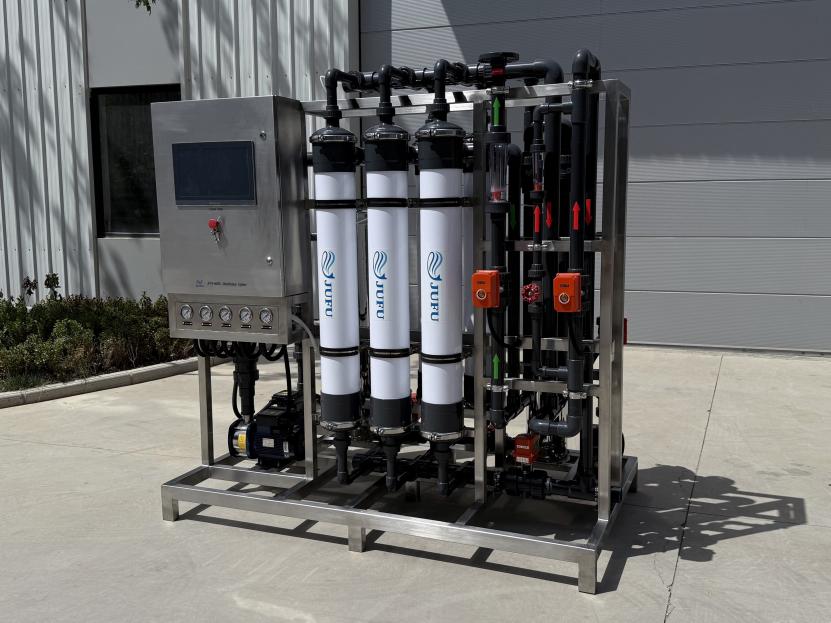

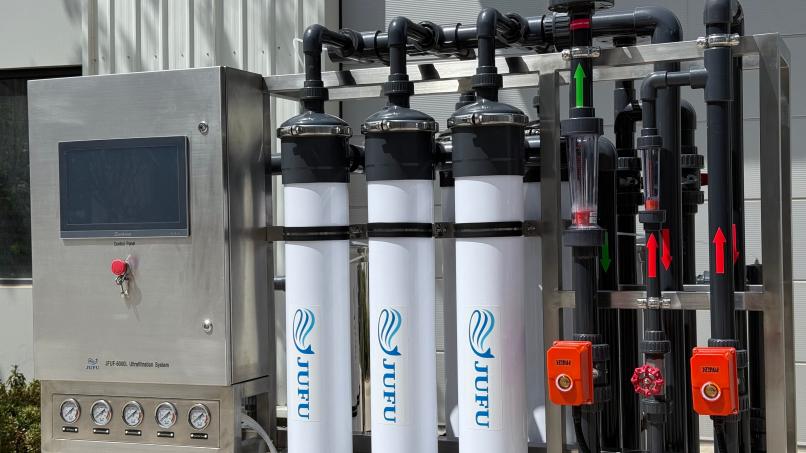

6000LPH Ultrafiltration System
JFUF-6000L Ultrafiltration System offers 6000LPH water treatment capacity for commercial and industrial applications. It provides efficient removal of suspended solids and impurities with low energy consumption and reliable membrane filtration technology.
Detailed Data
Model: JFUF-6000L
ISO9001 & CE certified
Capacity: 6000liter/hour
Recovery rate: 95%
UF Membrane: PVC/PVDF
Membrane size: 6”
Control type: Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description
High-efficiency separation, excellent water quality
Ultrafiltration membranes have a filtration precision ranging from 0.001 to 0.1 micrometres and are effective at removing harmful substances from water. The treated water is clear and consistent in quality, and offers a high level of microbiological safety.
Easy to operate and simple to maintain
The system has a simple structure and a short process flow, making it easy to automate.Ultrafiltration membranes are resistant to chemical corrosion, have a wide pH range (typically 2–11) and are easy to clean.
Retaining beneficial minerals
Ultrafiltration separates only suspended solids and colloids, without removing dissolved minerals. The product water retains beneficial calcium, magnesium, and potassium ions.
Product Description
High-efficiency separation, excellent water quality
Ultrafiltration membranes have a filtration precision ranging from 0.001 to 0.1 micrometres and are effective at removing harmful substances from water. The treated water is clear and consistent in quality, and offers a high level of microbiological safety.
Easy to operate and simple to maintain
The system has a simple structure and a short process flow, making it easy to automate.Ultrafiltration membranes are resistant to chemical corrosion, have a wide pH range (typically 2–11) and are easy to clean.
Retaining beneficial minerals
Ultrafiltration separates only suspended solids and colloids, without removing dissolved minerals. The product water retains beneficial calcium, magnesium, and potassium ions.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Industrial-Grade Reliability
Built for continuous operation in demanding water treatment applications.
Rock-Solid Water Quality Stability
Consistent permeate quality under various operating conditions.
Fully automatic PLC control
No dedicated personnel required; only periodic inspections are needed, significantly reducing labor costs.
High recovery rate
With a water recovery rate of up to 95% and minimal wastewater discharge, this saves on valuable water charges.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Product Deatails

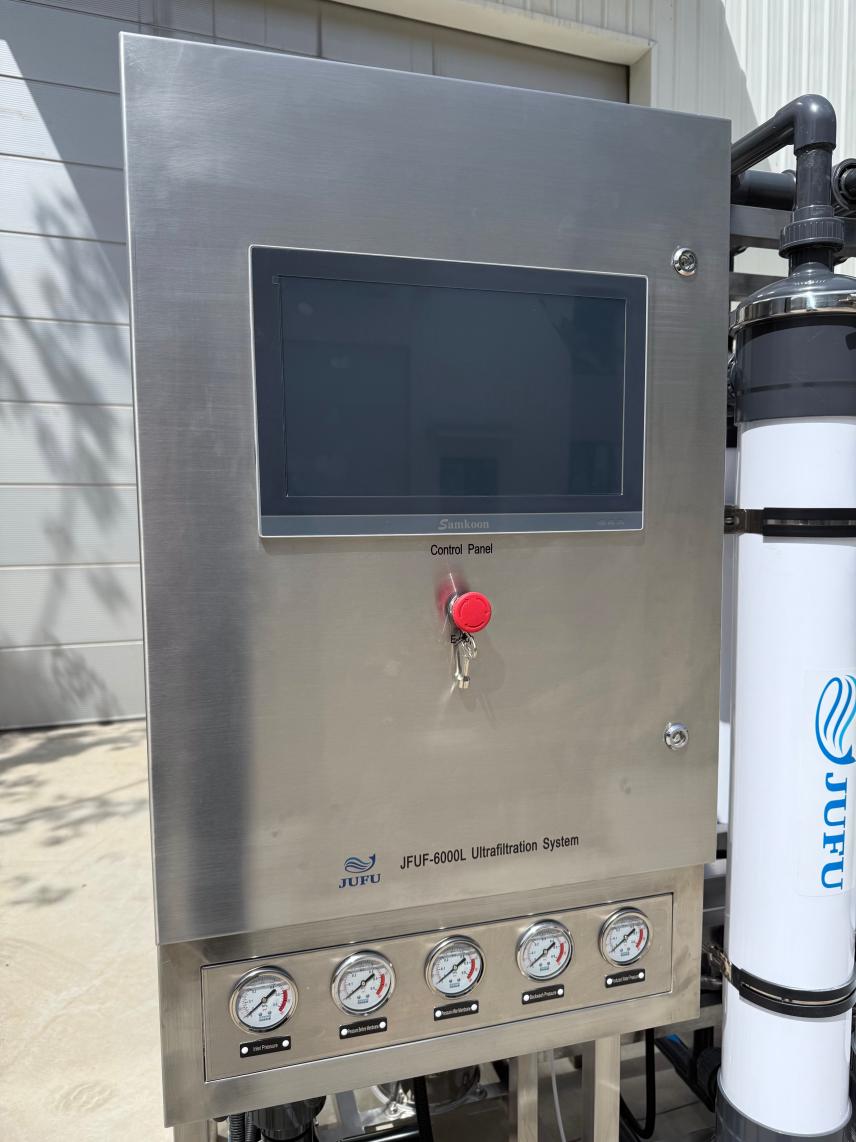

PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process

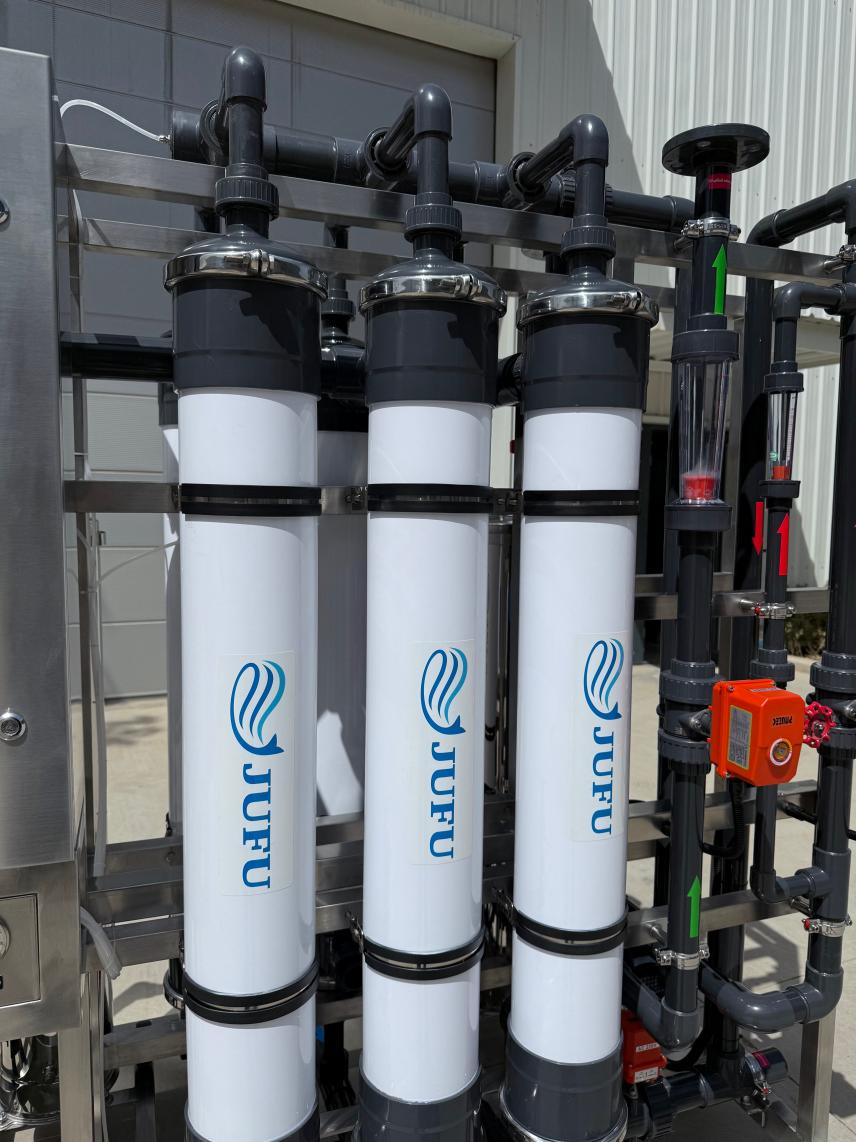

Outstanding Performance UF Membrane
Leading brand with outstanding performance UF membrane

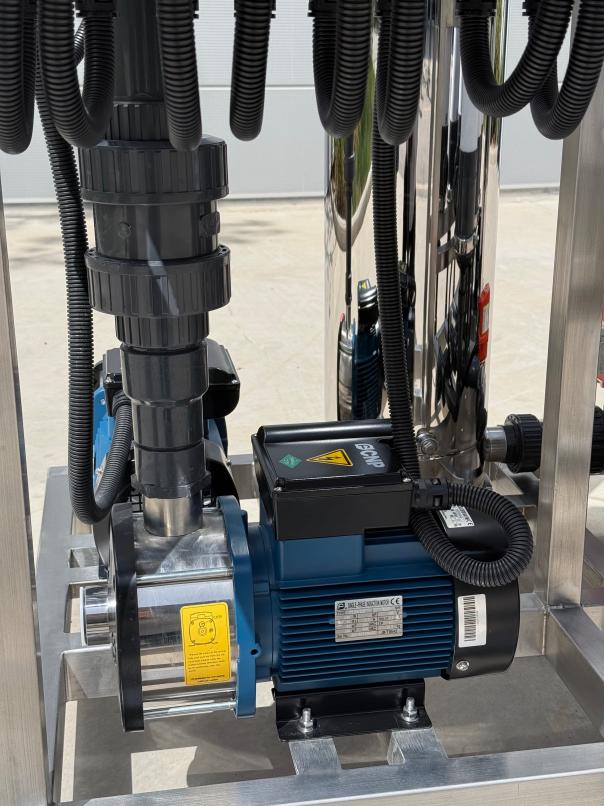

Picky Selection of Key components
We only choose leading quality components to 100% guarantee the product quality
Product Deatails
The core link enabling information exchange and efficient collaboration between operators and machinery. It integrates hardware and software to present the equipment’s internal status and data to the user in an intuitive manner—such as through graphics and text—and to receive the user’s instructions and relay them to the equipment.
Contact UsPVC membranes offer a cost-effective solution, making them suitable for applications with limited budgets and good water quality; whereas PVDF membranes, with their outstanding resistance to fouling, chemical stability and long-term operational reliability, are the preferred choice for medium- to large-scale water treatment projects with stringent requirements for water quality and system stability.
Contact UsAn automated technology that cleans the internal surfaces of equipment such as tanks and pipes automatically by circulating cleaning fluid through sealed pipes, without the need for manual dismantling of the equipment.
Contact UsExcellent corrosion resistance, high strength and stability, easy to clean and hygienic, aesthetically pleasing and durable.
Contact UsSee Our System in Action

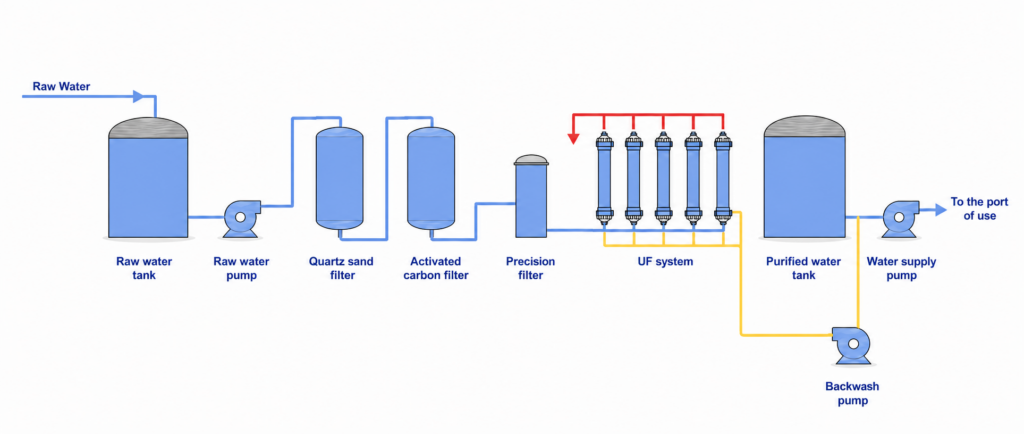

Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFUF-6000L | |||
| Producing Capacity | 6000L/H | UF membrane | 6” | |
| Recovery Rate | ≥95% | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Membrane Type | Inside out | Power Consumption | 1.5kW | |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control | |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | |||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | |||
RO System Maintenance & Consumables Replacement Guide
Filter Media
Quartz sand, activated carbon and resin are essential filter media for RO pretreatment systems. They effectively remove suspended solids, chlorine and hardness ions. Recommended replacement period: every 18-24 months.
UF Membrane
As the core consumable component of ultrafiltration equipment, it plays a vital role in intercepting bacteria, viruses, colloids and suspended solids. Should your equipment’s water production rate decrease or the transmembrane pressure difference increase, the membrane assembly should be replaced promptly; the replacement cycle is 2–3 years.
Chemical Dosing
Professional dosing chemicals protect UF membranes by preventing scaling, fouling, and biological contamination, improving system efficiency and extending membrane service life.
RO System Maintenance & Consumables Replacement Guide
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
