1000LPH Ultrafiltration Water Treatment Plant
JFUF-1000L 1000LPH Ultrafiltration Plant is an efficient water purification system using advanced UF membrane technology. It effectively removes suspended solids, turbidity and microorganisms for commercial and industrial water treatment applications.
Detailed Data
Model: JFUF-1000L
ISO9001 & CE certified
Capacity: 1000liter/hour
Recovery rate: 50%
UF Membrane: PVC/PVDF
Membrane size: 4040
Control type: Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description
Precision Filtration for Unwavering Water Quality
Absolute physical barrier: The hollow fiber membrane has a pore size of 0.01~0.1 microns, which can remove 100% of bacteria, E. coli, viruses, Giardia lamblia and other microorganisms from the water (effluent SDI<3, turbidity<0.1NTU).
Retaining beneficial minerals
Ultrafiltration separates only suspended solids and colloids, without removing dissolved minerals. The product water retains beneficial calcium, magnesium, and potassium ions.
Highly integrated, saving space
Skid-mounted integrated design: Multiple diaphragm housings, pipelines, valves, instruments and control cabinets are all integrated on a single stainless steel base.
Product Description
Precision Filtration for Unwavering Water Quality
Absolute physical barrier: The hollow fiber membrane has a pore size of 0.01~0.1 microns, which can remove 100% of bacteria, E. coli, viruses, Giardia lamblia and other microorganisms from the water (effluent SDI<3, turbidity<0.1NTU).
Retaining beneficial minerals
Ultrafiltration separates only suspended solids and colloids, without removing dissolved minerals. The product water retains beneficial calcium, magnesium, and potassium ions.
Highly integrated, saving space
Skid-mounted integrated design: Multiple diaphragm housings, pipelines, valves, instruments and control cabinets are all integrated on a single stainless steel base.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Absolutely physical sterilization
With a filtration precision of 0.01 microns, the removal rate of bacteria and E. coli is 99.99%. The quality of the produced water is unaffected by fluctuations in the raw water supply.
Fully Automatic PLC Control
Equipped with an industrial-grade touchscreen for one-button start. The equipment automatically executes the entire process of water production, forward flushing, backflushing, and wastewater discharge, and features self-diagnostic alarm functions.
Low Operating Cost
Optimized system design reduces energy consumption and maintenance requirements.
Reliable & Long Service Life
High-quality components and robust design ensure long-term operation.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Product Deatails

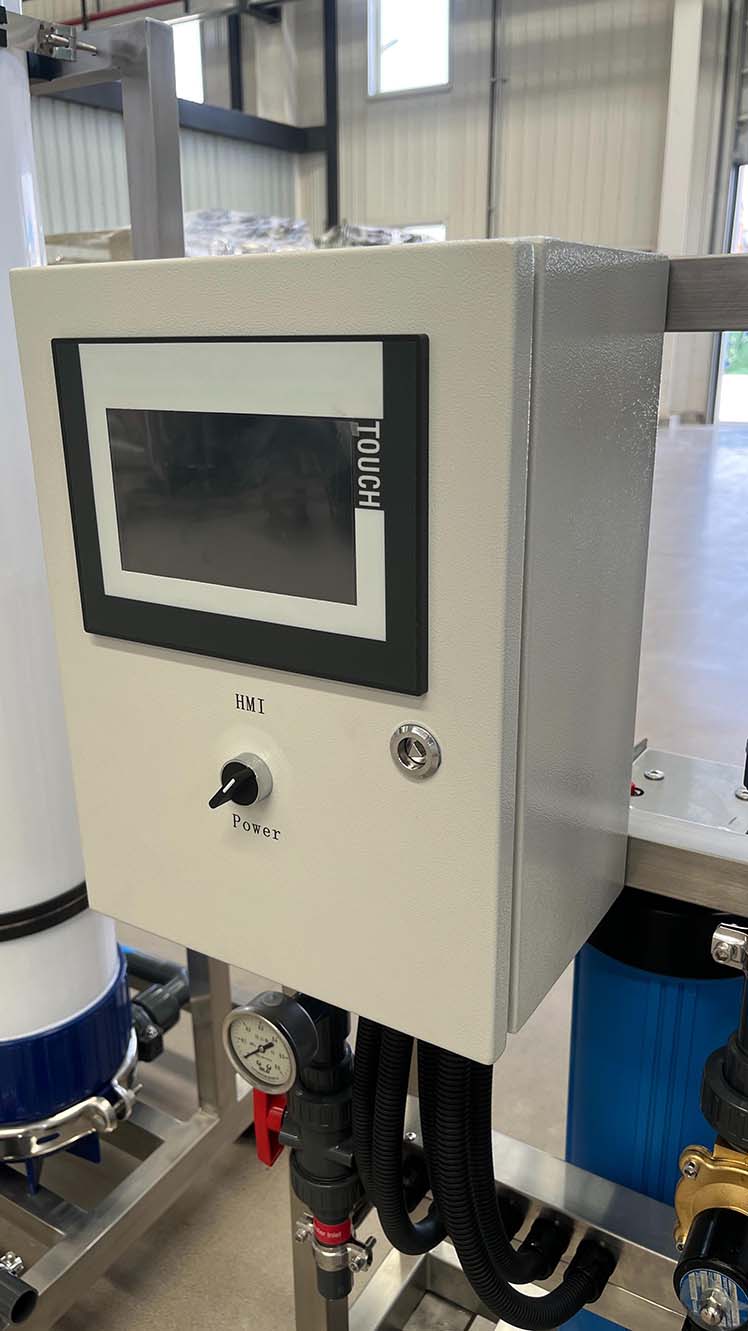

PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process
Outstanding Performance UF Membrane
Leading brand with outstanding performance UF membrane
Picky Selection of Key components
We only choose leading quality components to 100% guarantee the product quality
Product Deatails
Ultrafiltration, as the core treatment unit, removes bacteria and colloids from the water while retaining natural minerals such as calcium and magnesium. The finished water can be bottled directly without boiling.
Contact UsIt effectively retains pectin, protein and polyphenol macromolecules, resulting in a clear and transparent permeate without damaging flavor compounds and extending product shelf life.
Contact UsUsed for sterilization pretreatment of milk before skimming, and for turbidity and sterilization of water used in beer/baijiu brewing, ensuring stable fermentation process.
Contact UsUltrafiltration, as a pre-treatment for RO reverse osmosis, stabilizes the SDI (Soil Depositivity Index) to <3, effectively extending the RO membrane life by 2-3 times and reducing the risk of microparticles in chip/circuit board cleaning water.
Contact UsSee Our System in Action
Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFUF-1000L | |||
| Producing Capacity | 1000L/H | UF membrane | 4” | |
| Recovery Rate | 95% | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Desalination Rate | 99.50% | Power Consumption | 0.5kW | |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control | |
| Feed Water Quality | Turbidity＜50NTU Free Chlorine Concentration<1.0mg/L SS＜50mg/L | |||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | |||
RO System Maintenance & Consumables Replacement Guide
PP Filter
PP filters remove suspended particles and impurities before UF membrane filtration. Regular replacement ensures stable water flow, protects the UF membrane and improves system performance. Recommended replacement: every 1-3 months.
UF Membrane
As the core consumable component of ultrafiltration equipment, it plays a vital role in intercepting bacteria, viruses, colloids and suspended solids. Should your equipment’s water production rate decrease or the transmembrane pressure difference increase, the membrane assembly should be replaced promptly; the replacement cycle is 2–3 years.
Ultraviolet Steriliser（Optional）
With a UV transmittance of over 95%, every drop of water is evenly irradiated, achieving a sterilization efficiency of 99.99%.The lamp needs to be replaced annually.
Activated Carbon（Optional）
Activated carbon filter (pre-treatment) — removes residual chlorine and odours, and extends the service life of the UF membranes,replace every two years。
RO System Maintenance & Consumables Replacement Guide
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
