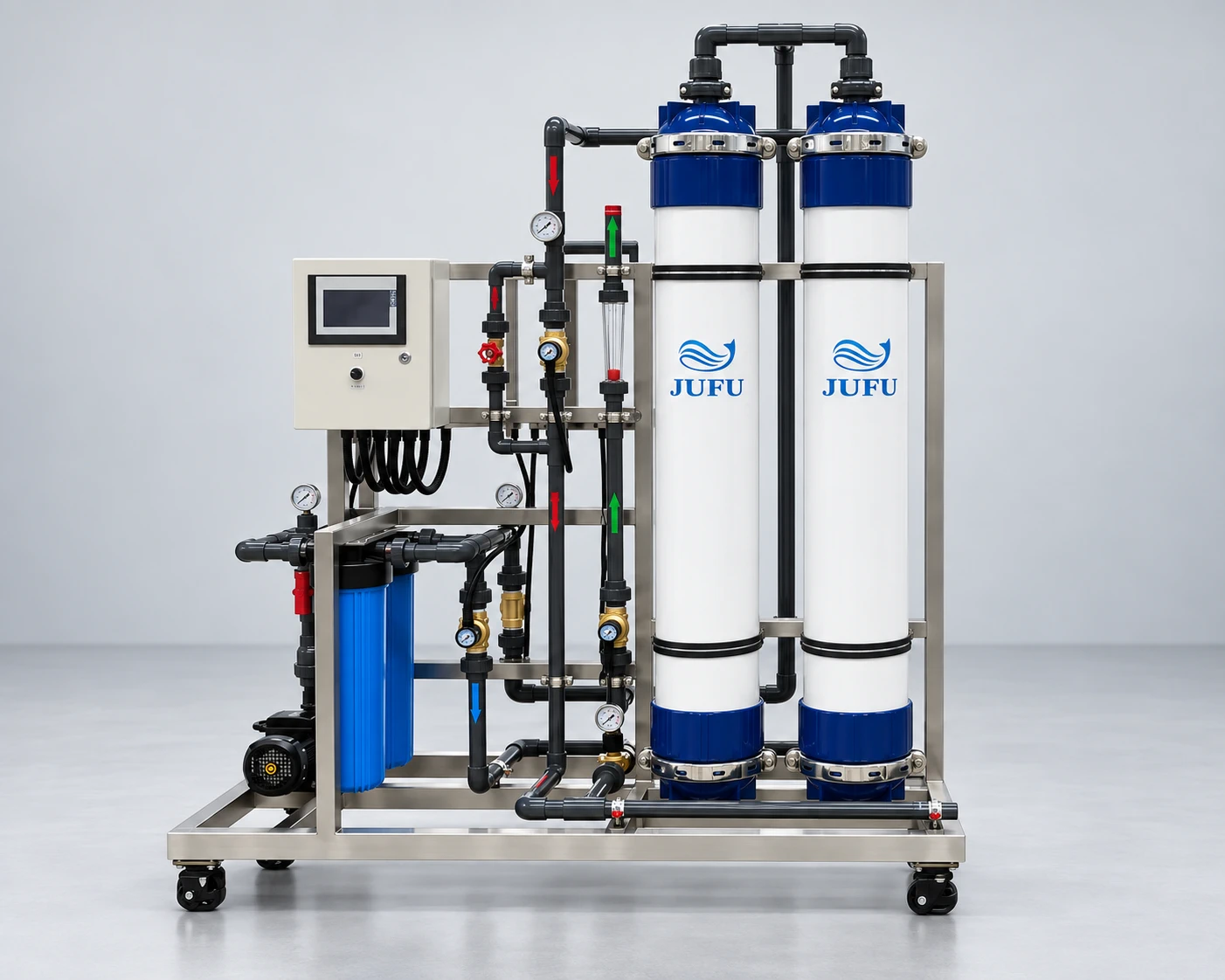

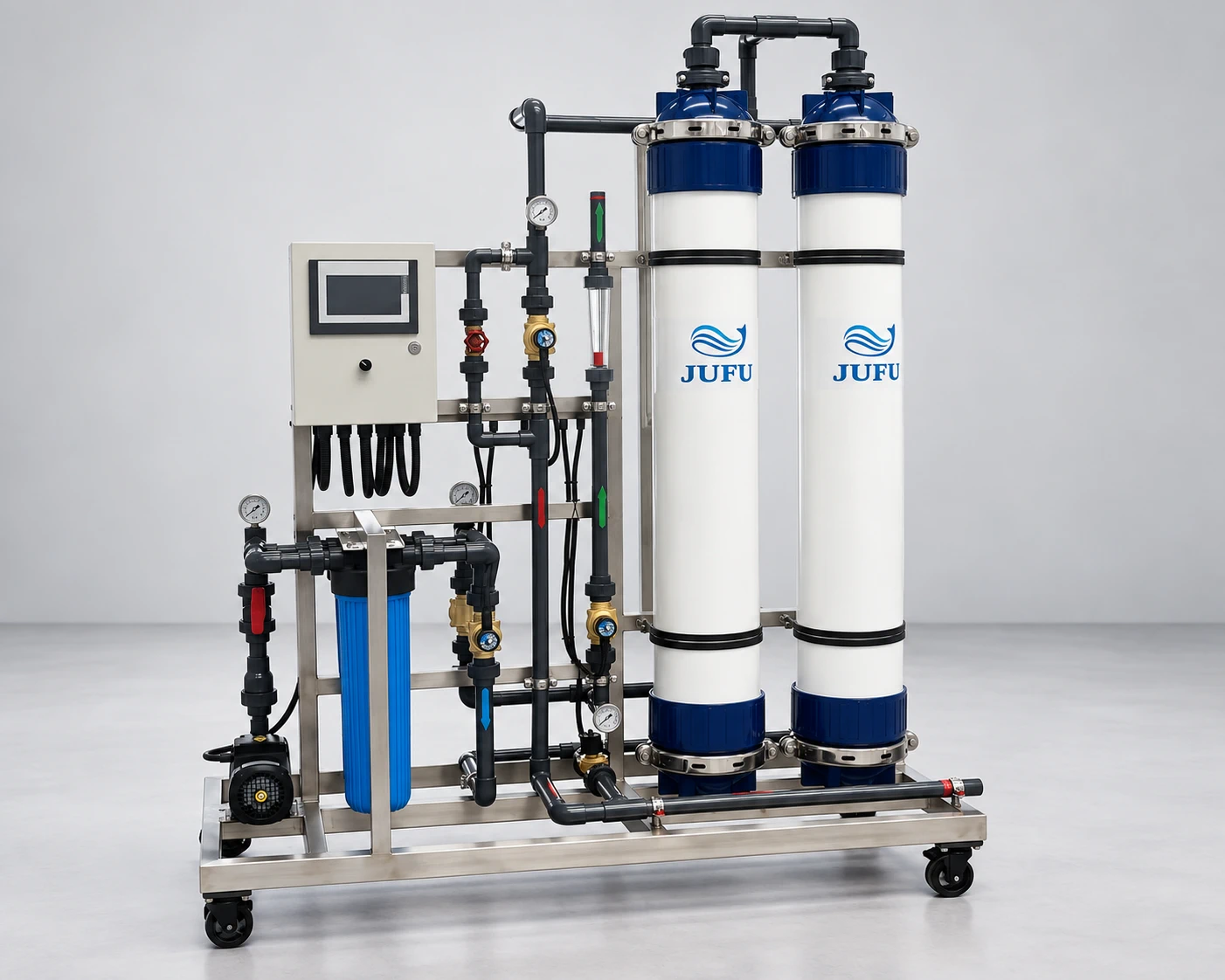

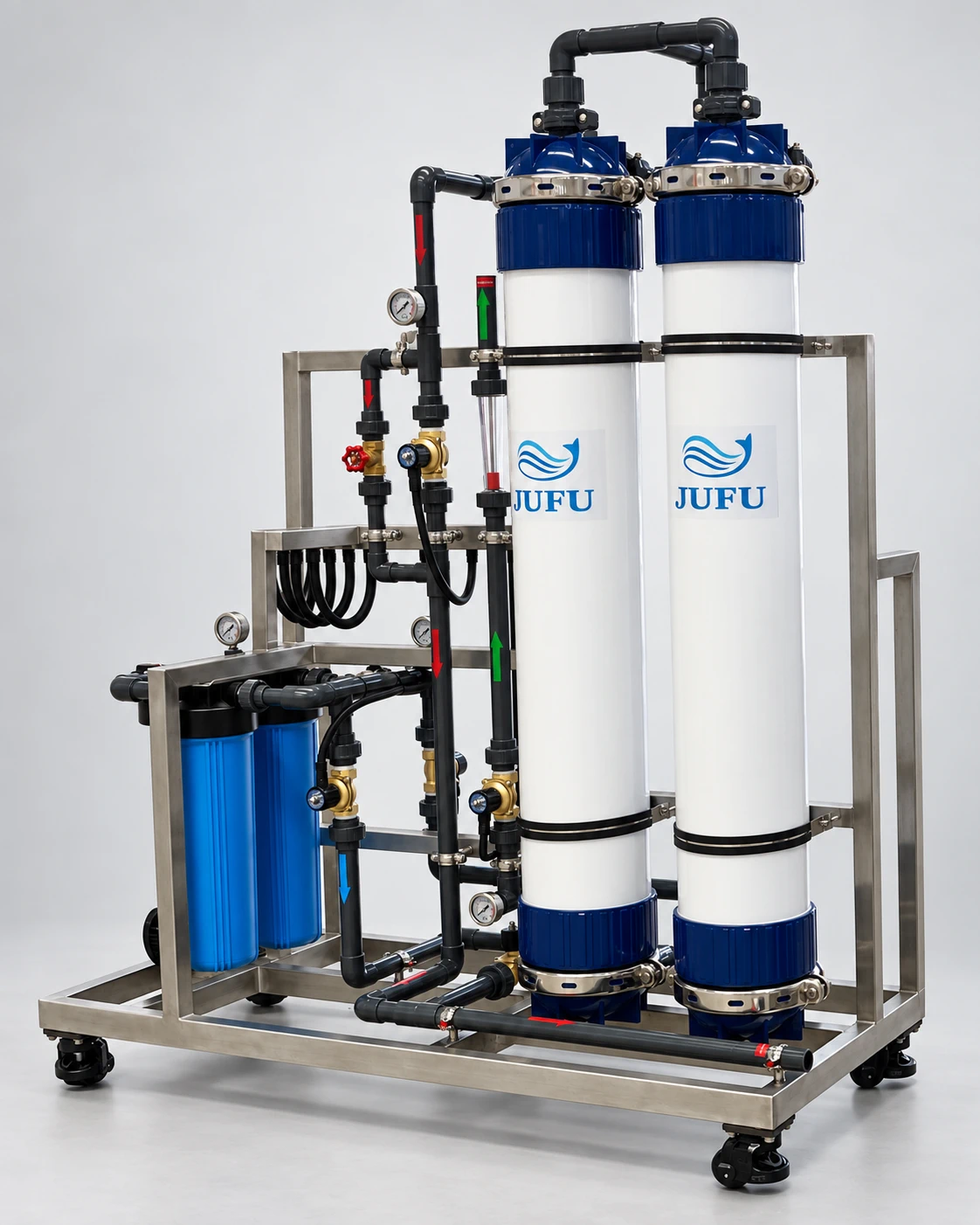

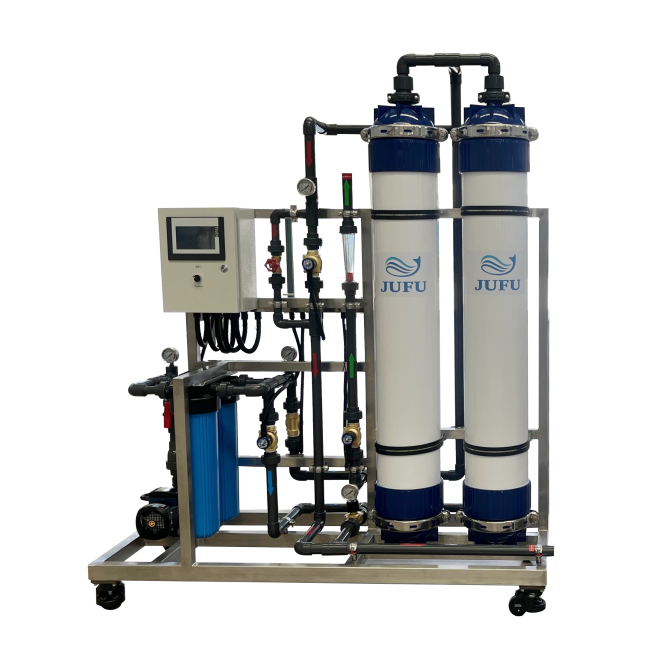

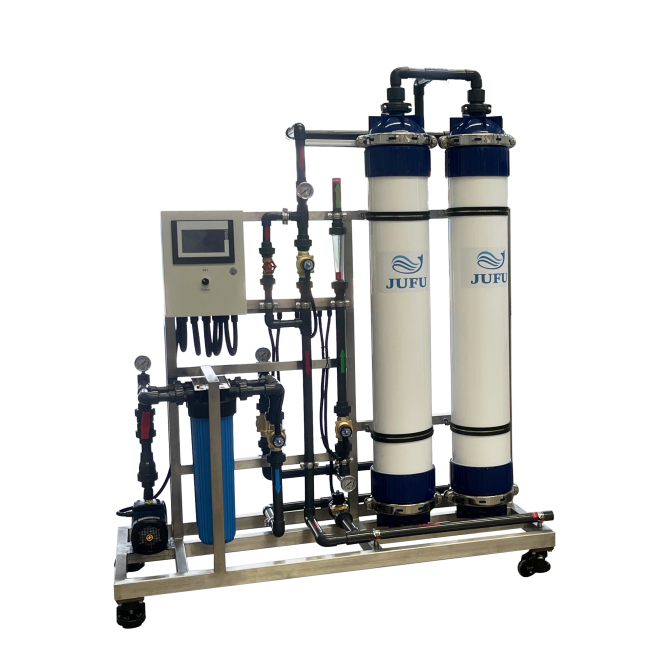

4000LPH UF Water Treatment Plant
JFUF-4000L 4000LPH Ultrafiltration Water Treatment Plant is designed for high-efficiency industrial water purification. Using advanced hollow fiber membrane technology, it provides reliable filtration and stable water quality for various applications.
Detailed Data
Model: JFUF-4000L
ISO9001 & CE certified
Capacity: 4000/hour
Recovery rate: 95%
UF Membrane: PVC/PVDF
Membrane size: 10”
Control type: Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description
Superior filtration performance and water quality
It offers high filtration precision and produces water of excellent and consistent quality; whilst removing harmful substances, it retains mineral ions such as calcium, magnesium and sodium, which are beneficial to human health.
Compact design, high flexibility
The equipment is compact in design, easy to expand and suitable for a wide range of applications.
Easy to operate and simple to maintain
The system has a simple structure and a short process flow, making it easy to automate.Ultrafiltration membranes are resistant to chemical corrosion, have a wide pH range (typically 2–11) and are easy to clean.
Product Description
Superior filtration performance and water quality
It offers high filtration precision and produces water of excellent and consistent quality; whilst removing harmful substances, it retains mineral ions such as calcium, magnesium and sodium, which are beneficial to human health.
Compact design, high flexibility
The equipment is compact in design, easy to expand and suitable for a wide range of applications.
Easy to operate and simple to maintain
The system has a simple structure and a short process flow, making it easy to automate.Ultrafiltration membranes are resistant to chemical corrosion, have a wide pH range (typically 2–11) and are easy to clean.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
High recovery rate
With a water recovery rate of up to 95% and minimal wastewater discharge, this saves on valuable water charges.
Fully automatic PLC control
No dedicated personnel required; only periodic inspections are needed, significantly reducing labor costs.
Unrivalled flow stability
Regardless of fluctuations in the quality of the raw water, the turbidity of the treated water remains consistently below 0.1 NTU, with a bacterial removal rate of up to 99.99 per cent, ensuring the safety of the water used in downstream production lines.
Extend the service life of core equipment
Serving as a pretreatment for RO (reverse osmosis) systems, it effectively captures colloids and particulates, extending the service life of RO membranes by 1 to 2 times and significantly reducing the frequency of membrane replacement and cleaning costs.
Product Advantages
Why choose our RO systems?
How JUFU delivers more value to your business？
Product Deatails

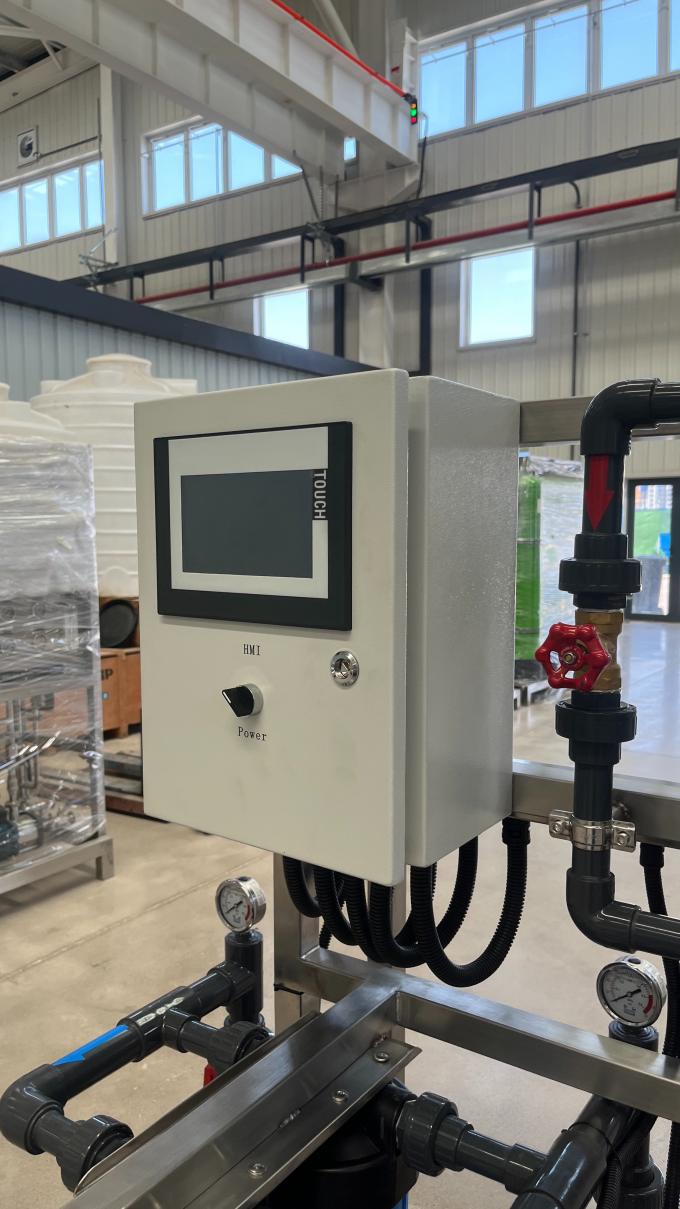

PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process

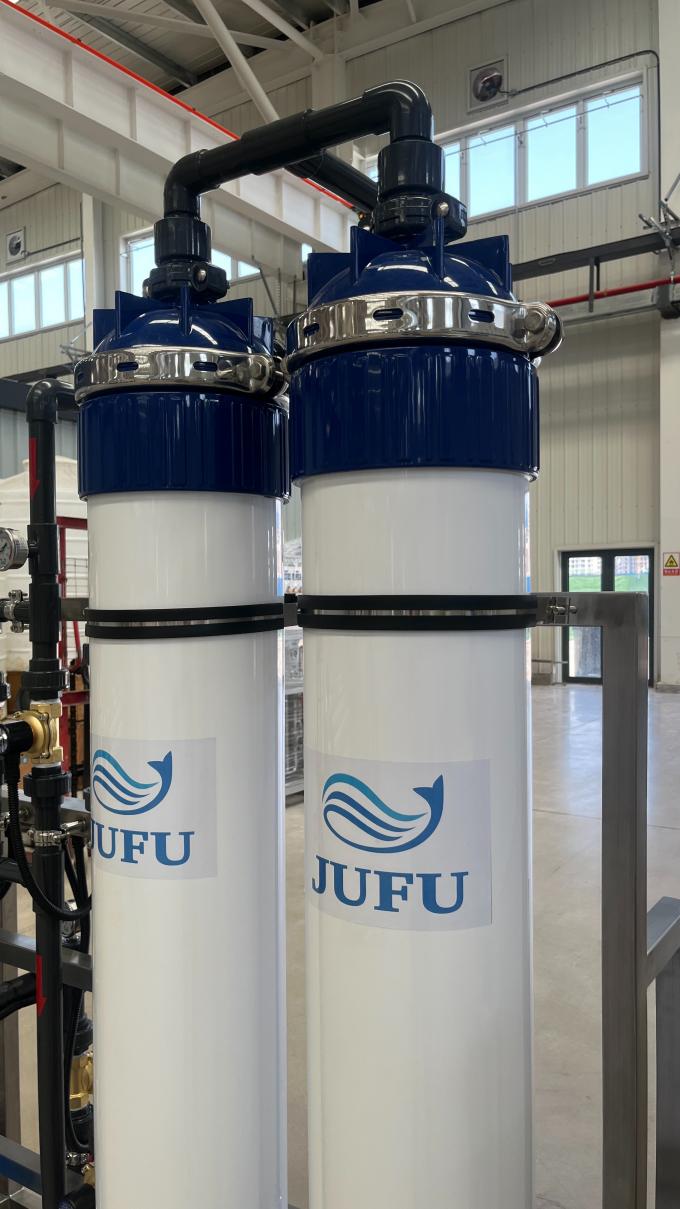

Outstanding Performance UF Membrane
Leading brand with outstanding performance UF membrane

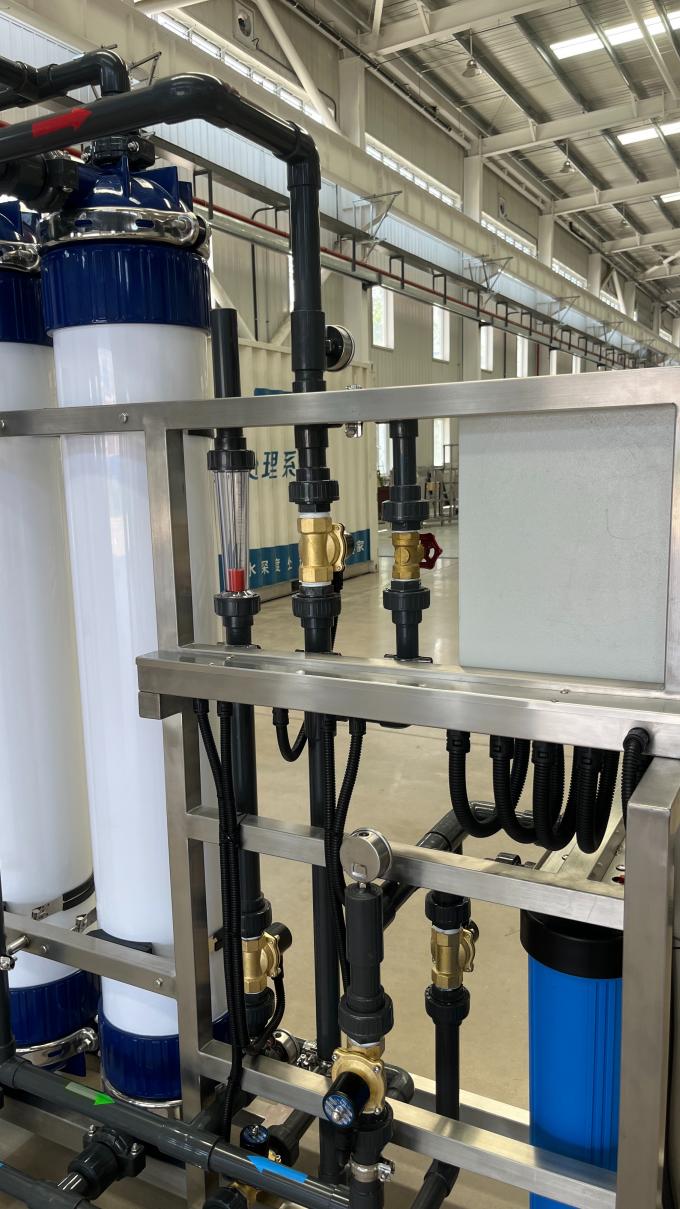

Picky Selection of Key components
We only choose leading quality components to 100% guarantee the product quality
Product Deatails
A complex engineering system that converts seawater, which is not suitable for direct consumption, into freshwater that meets the required standards. Its primary objective is to significantly reduce the salinity of seawater from approximately 35,000 mg/L to below 500 mg/L.
Contact UsBy passing the water through two reverse osmosis membranes, water of a higher purity than that achieved by single-stage reverse osmosis is obtained, with a total desalination rate exceeding 99.5 per cent. The conductivity of the produced water can be maintained at a stable level below 3 μS/cm, and may even reach levels of 1–10 μS/cm.
Contact UsA modular solution that integrates a complete water treatment system into a standard shipping container, offering flexibility and scalability, and allowing for relocation and reuse as required.
Contact UsIt tackles the problem of ‘limescale’, protects equipment and pipework, enhances quality of life, improves industrial processes, and offers potential health benefits.
Contact UsSee Our System in Action
Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFUF-4000L | |||
| Producing Capacity | 4000L/H | UF membrane | 10” | |
| Recovery Rate | ≥95% | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Membrane Type | Inside out | Power Consumption | 1.5kW | |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control | |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | |||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | |||
RO System Maintenance & Consumables Replacement Guide
Filter Media
Quartz sand, activated carbon and resin are essential filter media for RO pretreatment systems. They effectively remove suspended solids, chlorine and hardness ions. Recommended replacement period: every 18-24 months.
UF Membrane
As the core consumable component of ultrafiltration equipment, it plays a vital role in intercepting bacteria, viruses, colloids and suspended solids. Should your equipment’s water production rate decrease or the transmembrane pressure difference increase, the membrane assembly should be replaced promptly; the replacement cycle is 2–3 years.
Chemical Dosing
Professional dosing chemicals protect UF membranes by preventing scaling, fouling, and biological contamination, improving system efficiency and extending membrane service life.
RO System Maintenance & Consumables Replacement Guide
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
