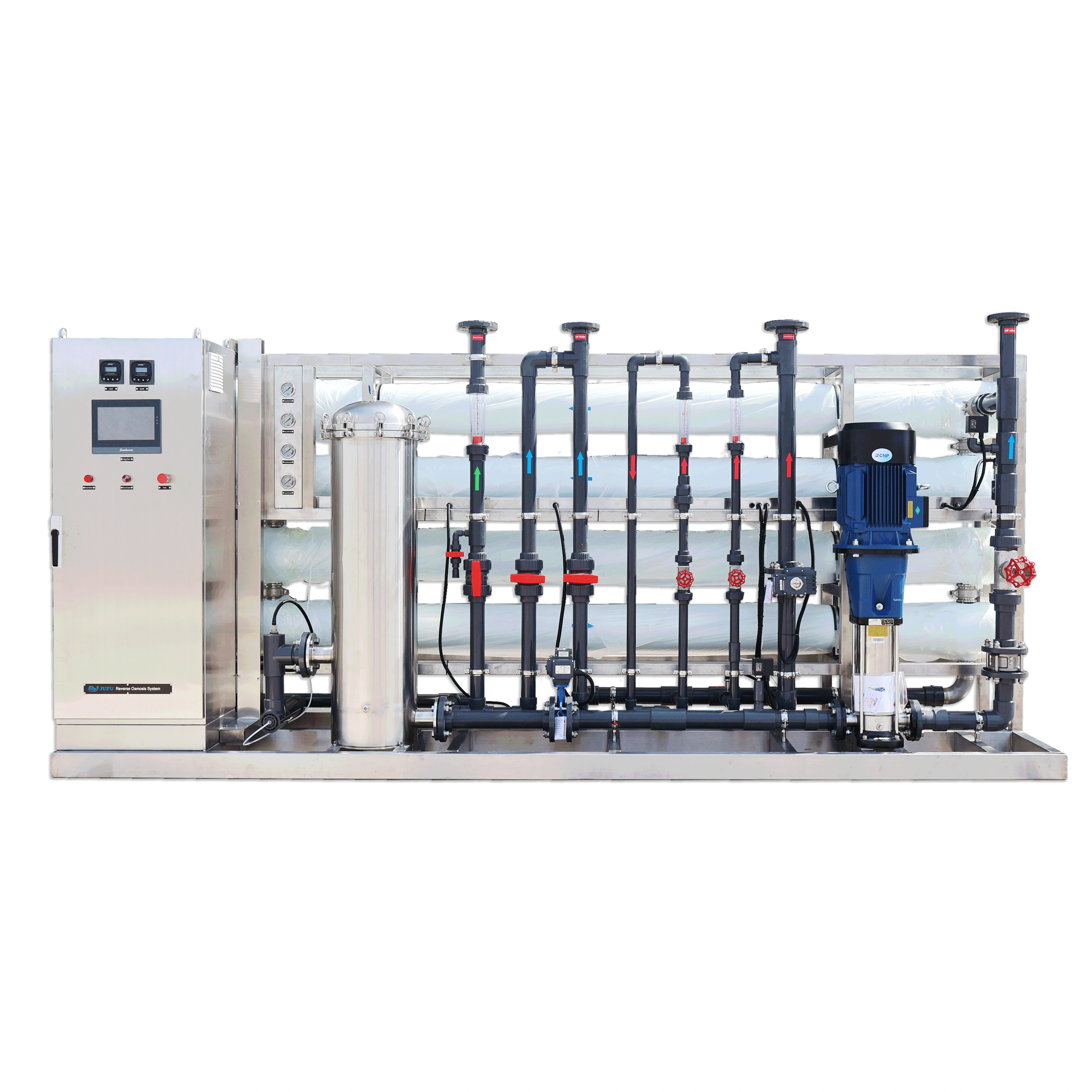

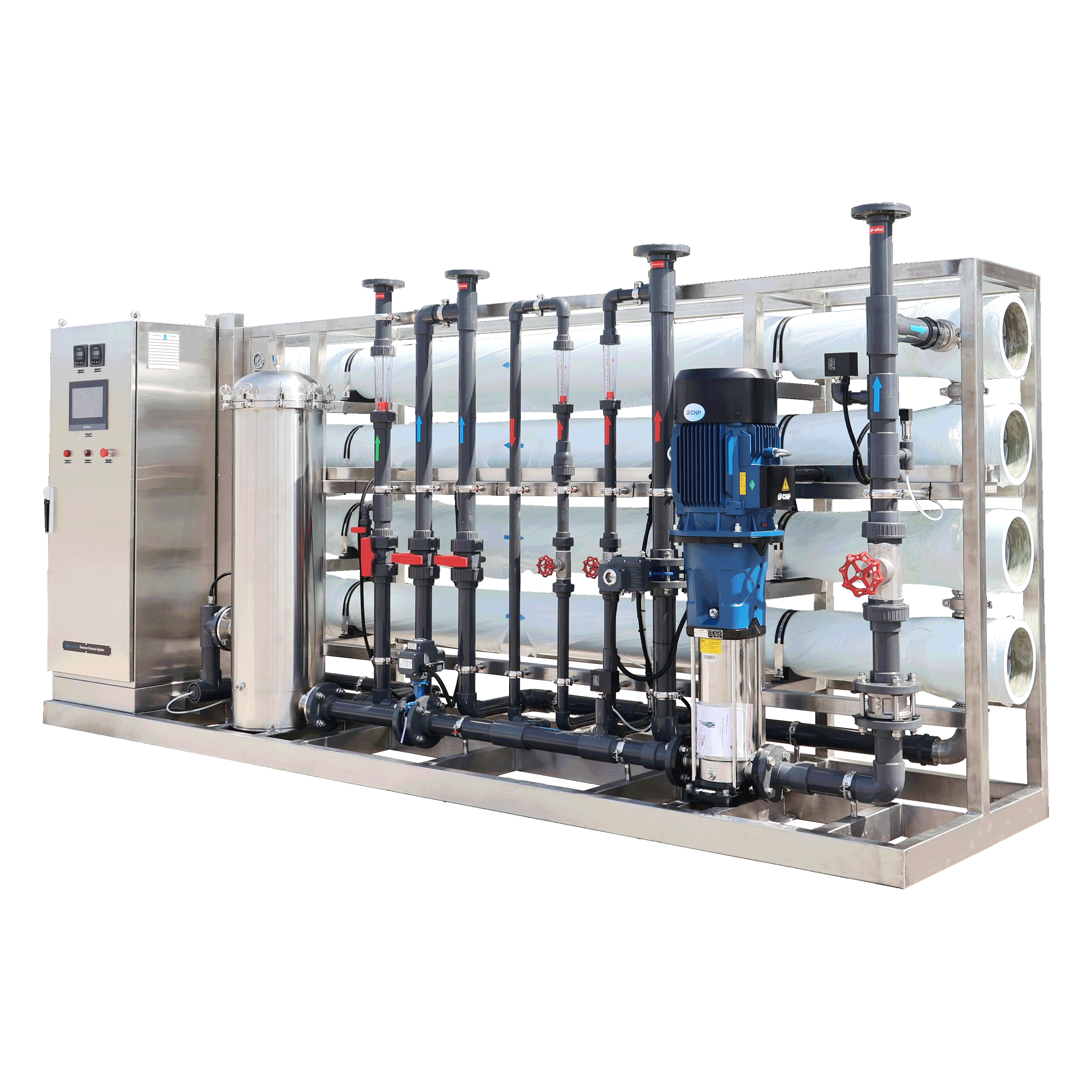

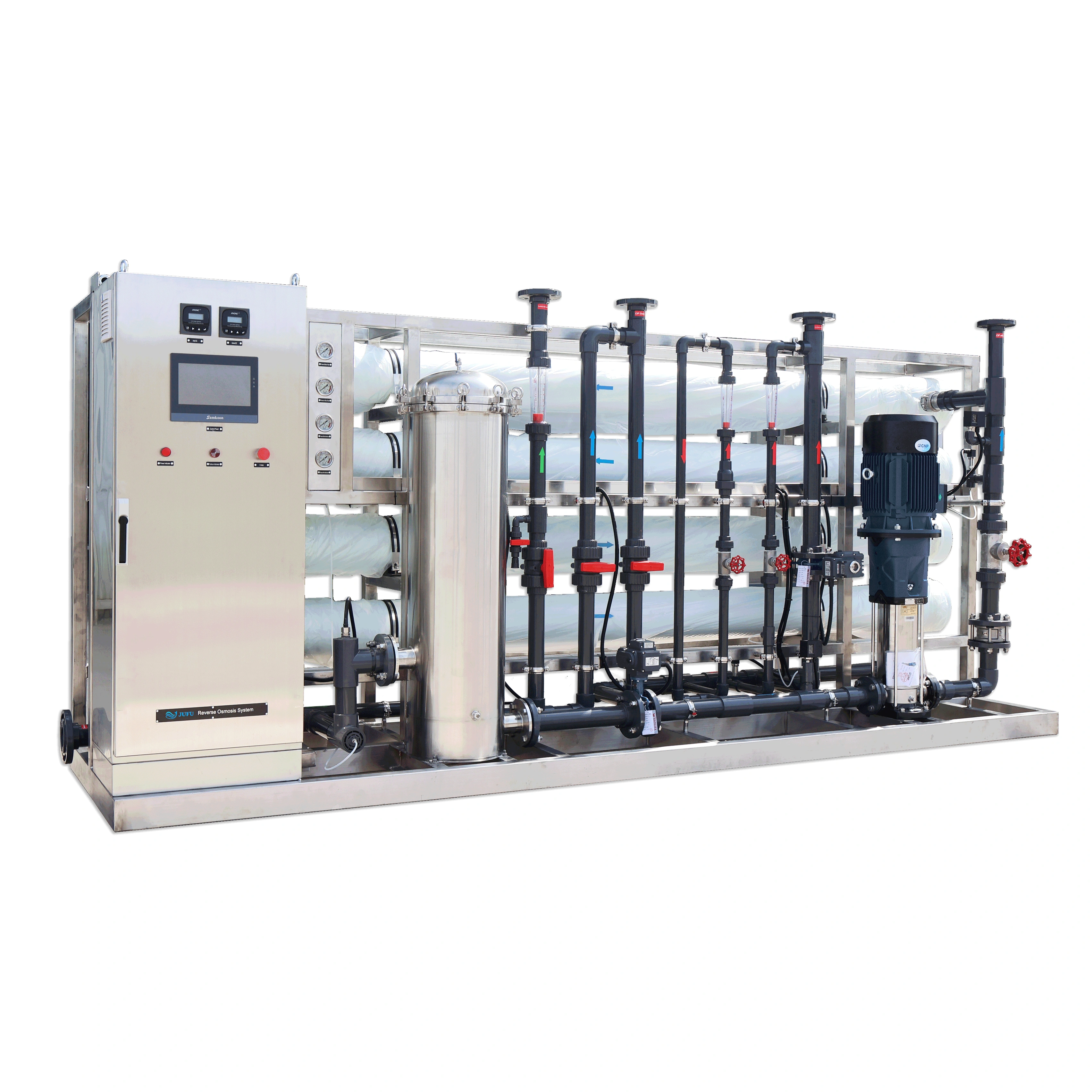

10TPH Customized RO Water Purification System for Industrial Applications
JFRO-10T Customized Reverse Osmosis Water Purification System is designed for industrial water treatment projects. With high-efficiency RO membranes and flexible configurations, it provides reliable purified water solutions for factories and commercial facilities.
Detailed Data
Model: JFRO-10T
ISO9001 & CE certified
Membrane size: 8040
Desalination rate: 99%
Recovery rate: 75%
Capacity: 10m³/hour
Control type:Auto
Warranty: 12 months
Package: Wooden case
Phone
+86 18001362005
sales@jufuwater.com
Product Description

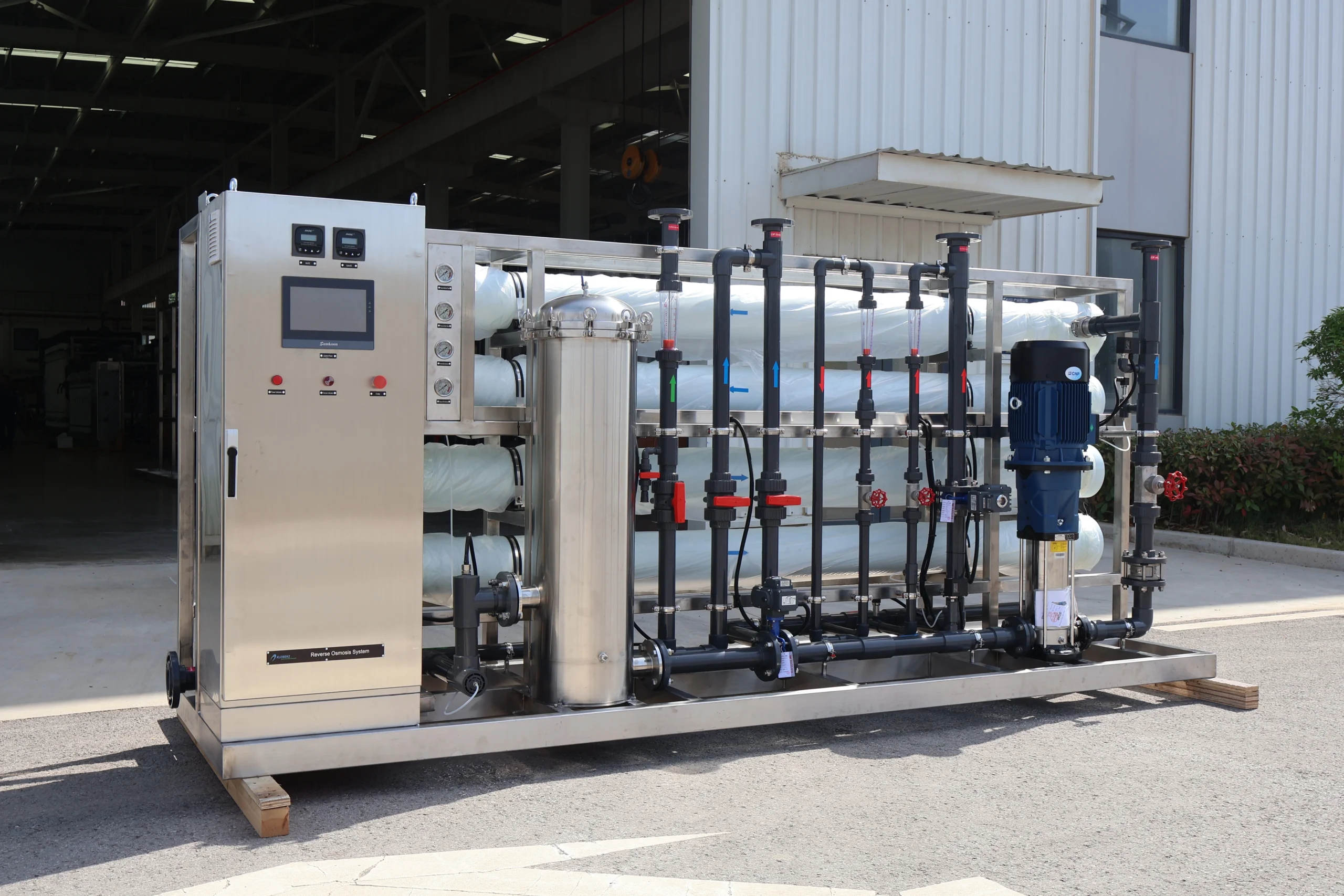

Excellent separation accuracy and desalination rate
RO (Reverse Osmosis) equipment can effectively remove dissolved salts (such as sodium, calcium, and chloride ions), organic matter, bacteria, viruses, etc. from water, with a desalination rate typically greater than 98%.
Stable and reliable water quality
The product water quality of RO equipment is very stable and is almost unaffected by fluctuations in the quality of the raw water.

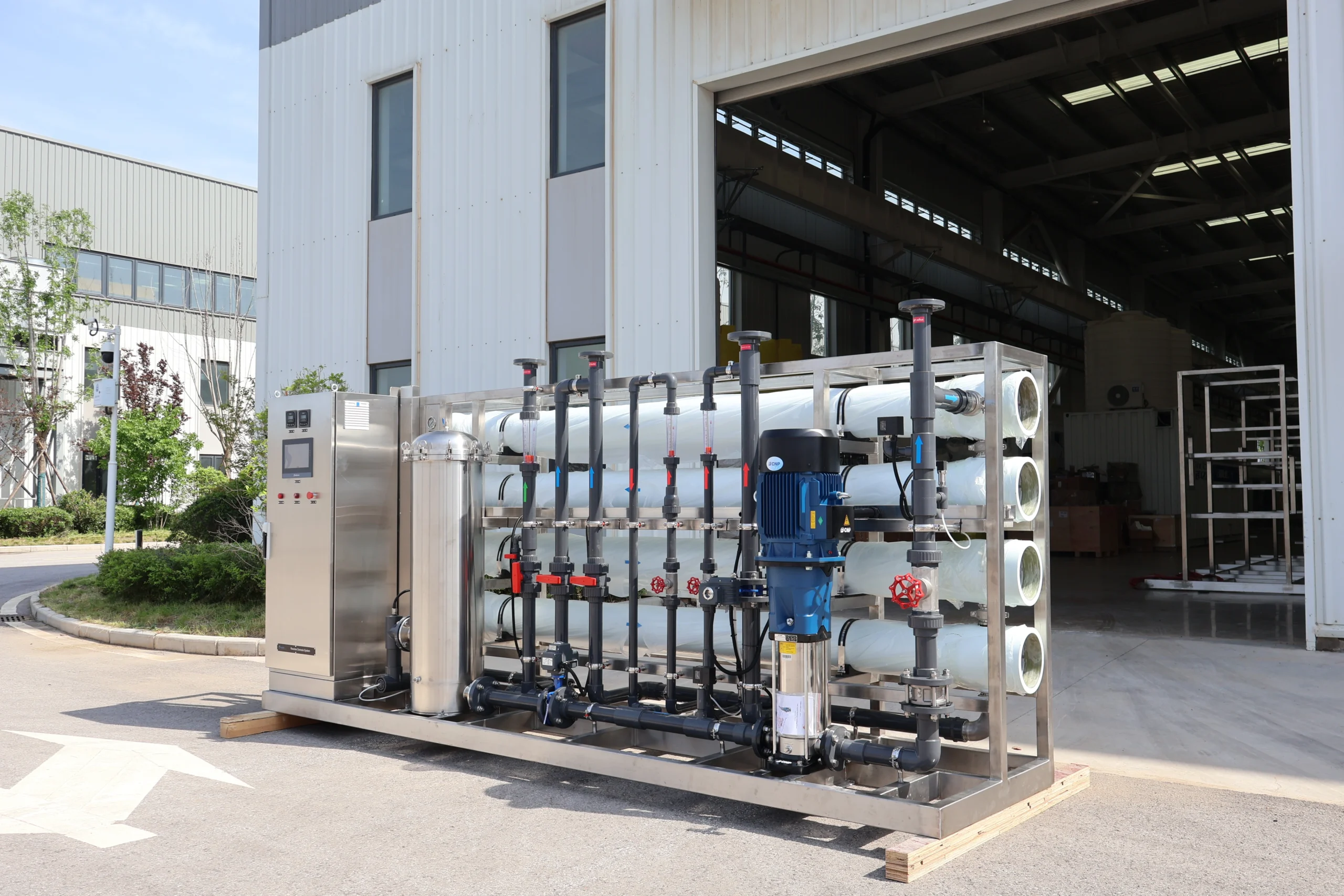

Relatively low energy consumption
The RO process is a physical separation driven by pressure at room temperature, without the need for heating and evaporation, which significantly reduces energy consumption and makes the operating cost more economical.
Product Description
Excellent separation accuracy and desalination rate
RO (Reverse Osmosis) equipment can effectively remove dissolved salts (such as sodium, calcium, and chloride ions), organic matter, bacteria, viruses, etc. from water, with a desalination rate typically greater than 98%.

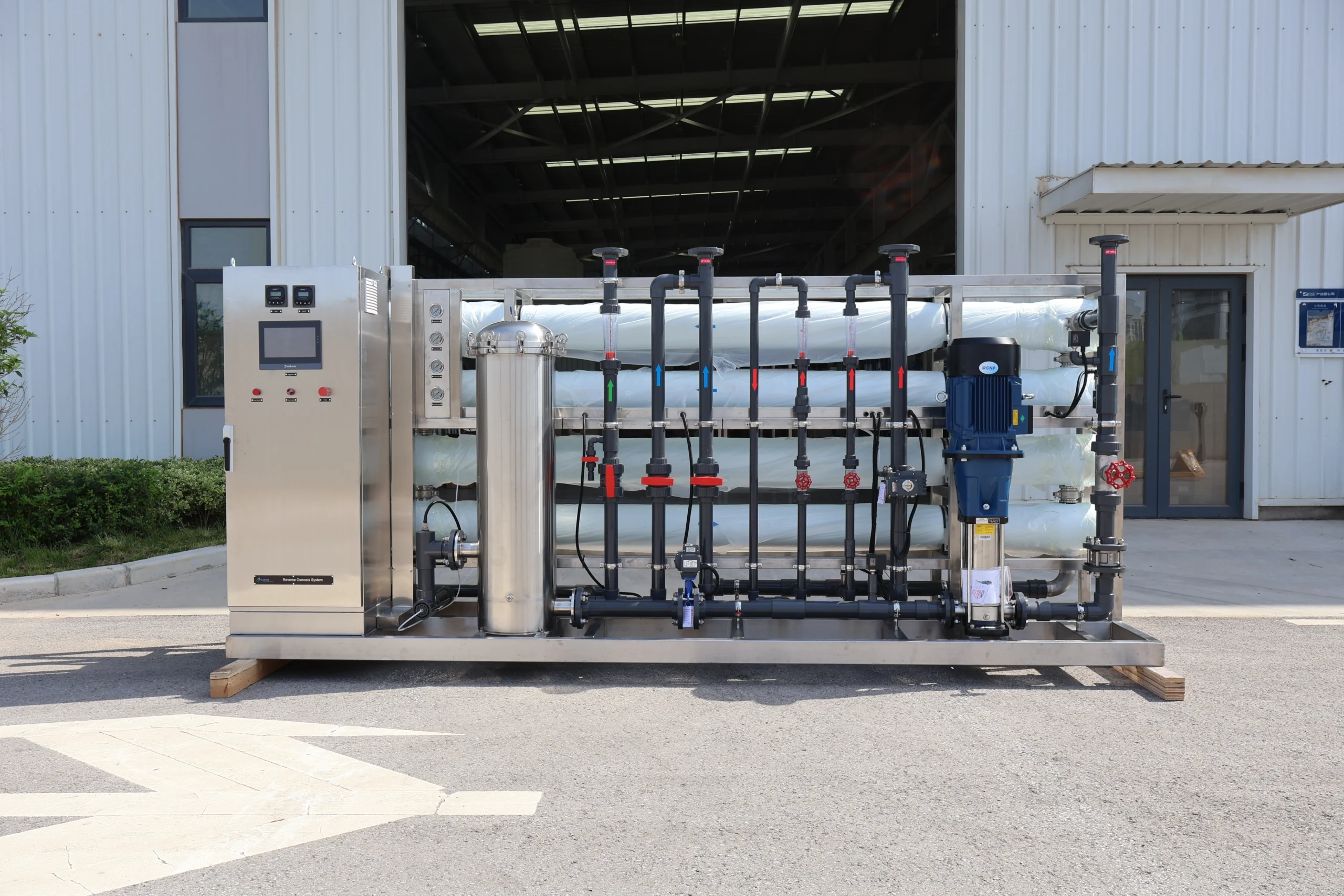

Stable and reliable water quality
The product water quality of RO equipment is very stable and is almost unaffected by fluctuations in the quality of the raw water.
Relatively low energy consumption
The RO process is a physical separation driven by pressure at room temperature, without the need for heating and evaporation, which significantly reduces energy consumption and makes the operating cost more economical.

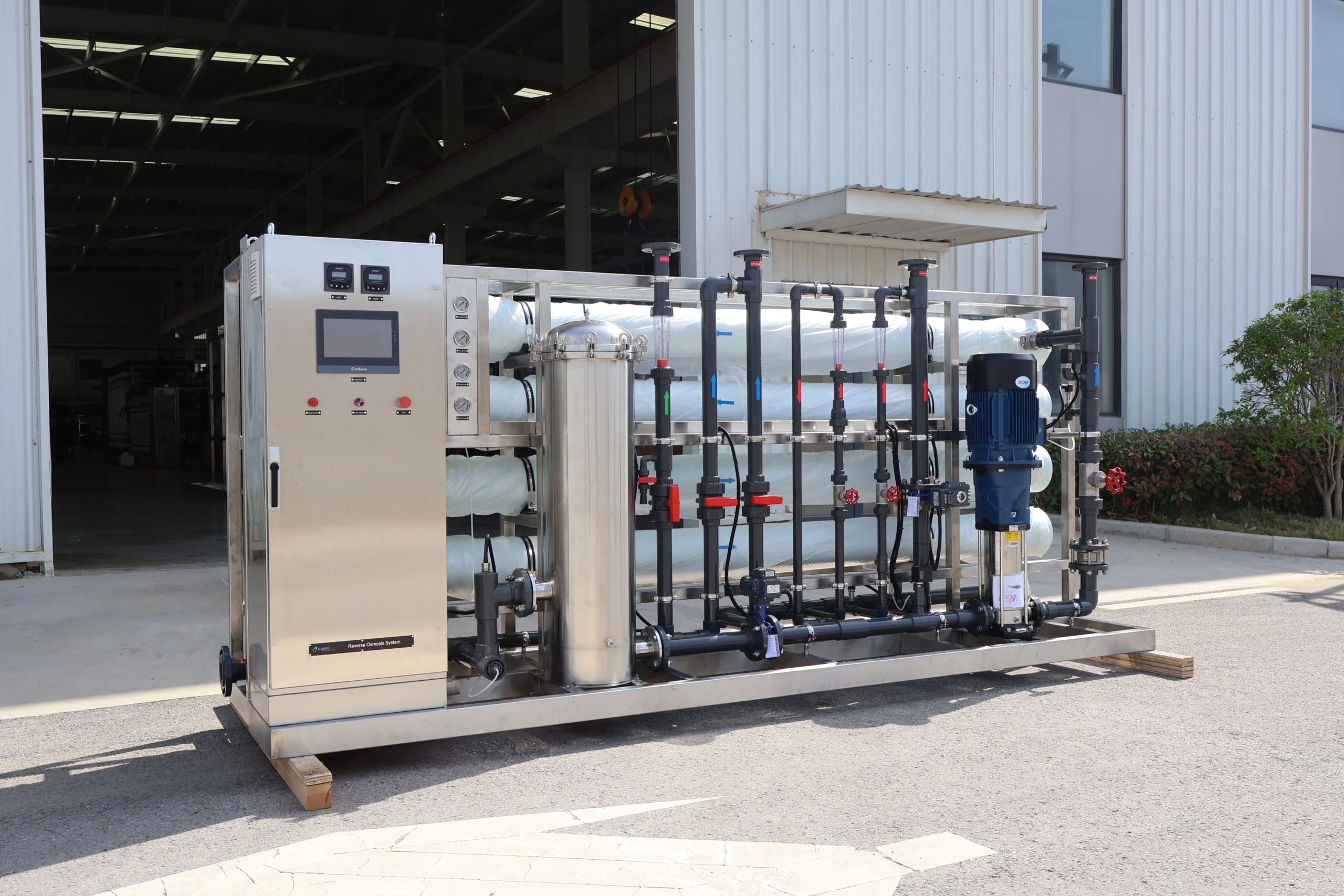

Product Advantages
Why choose our UF systems?
Here’s how we deliver more value to your business.
High degree of automation and easy maintenance
Typically equipped with a PLC (Programmable Logic Controller), it can automatically complete start-up, shutdown, flushing, operation monitoring, and fault alarm, greatly reducing the need for manual intervention and on-duty personnel.
Modular and Compact Design
Not only does this reduce the equipment’s footprint, but it also facilitates transportation and quick on-site installation and commissioning.
Fully Automatic Operation
Equipped with a PLC-based intelligent control system, it enables “one-touch start/stop” and automatically performs operations such as pretreatment backwashing and RO membrane flushing, making it virtually unattended.
Stable Production
The system is equipped with comprehensive high- and low-pressure protection devices, as well as low-water protection, which effectively prevent damage to the pump set caused by abnormal conditions such as dry running or undervoltage, ensuring long-term, stable operation.
Product Advantages
Why choose our UF systems?
Here’s how we deliver more value to your business.
Product Details

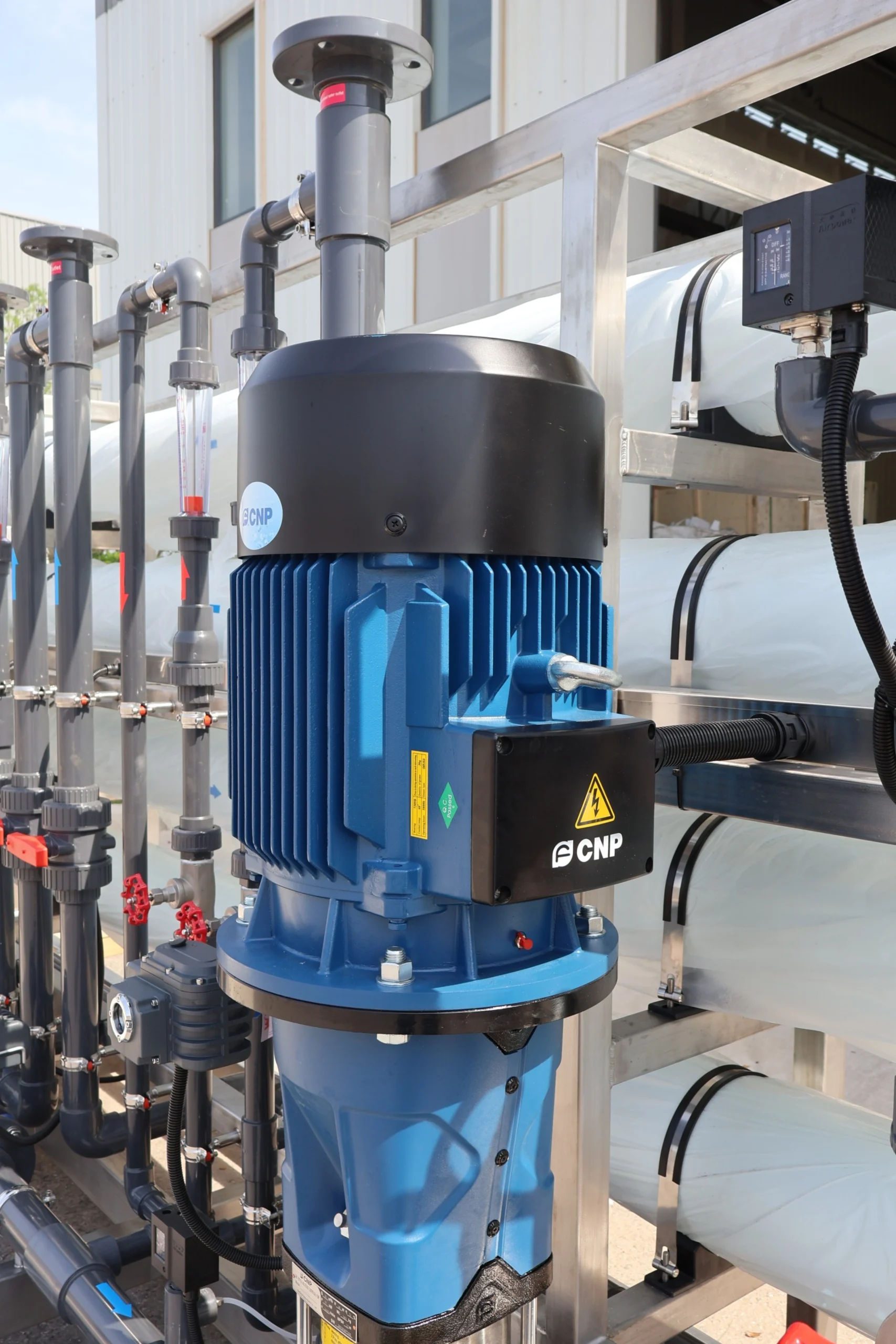

Stainless steel pump
Stainless steel pumps are pumps whose flow parts are made of stainless steel. Due to their excellent corrosion resistance and hygiene standards, they play a crucial role in water treatment equipment.

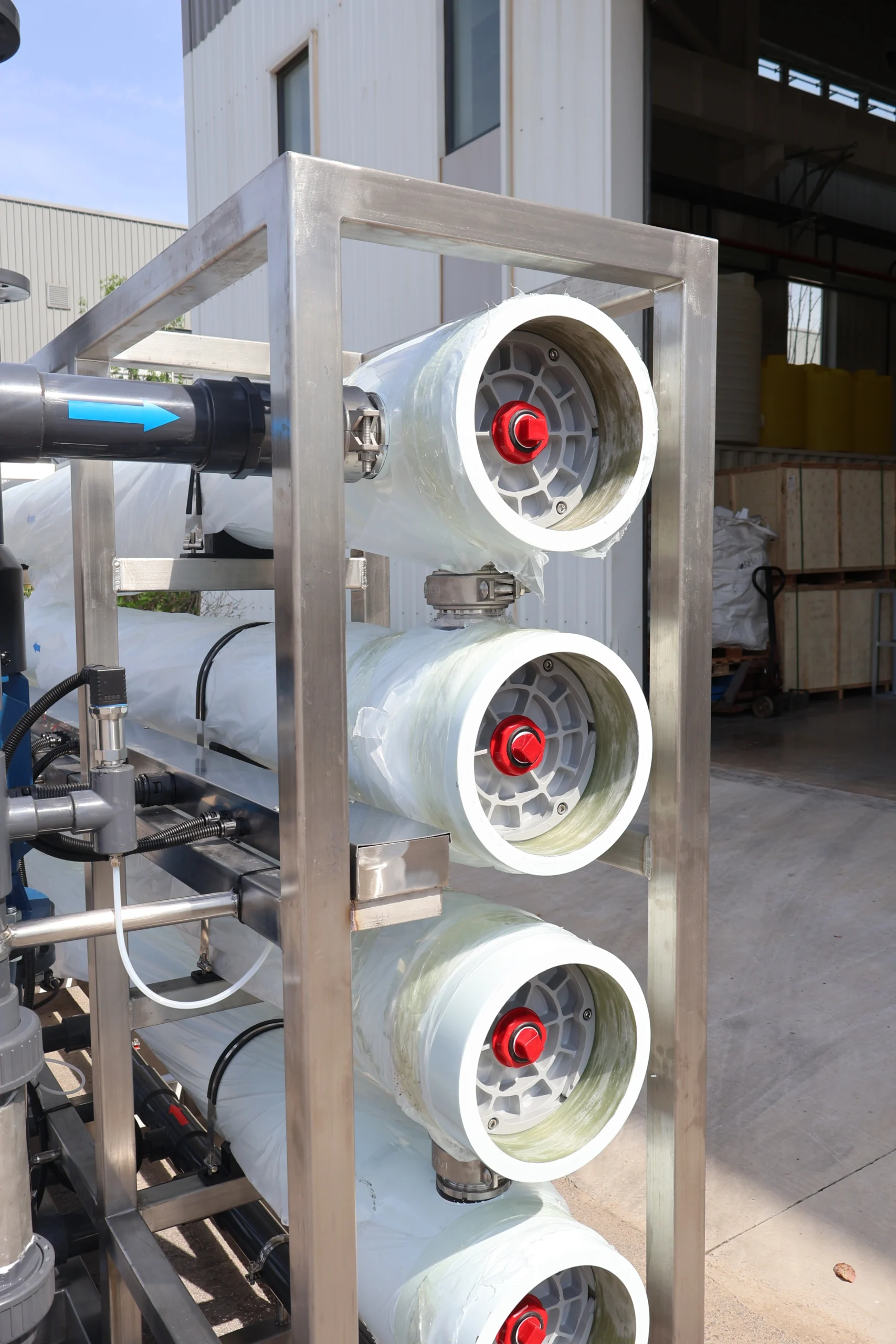

FRP RO membrane housing
Lightweight and high-strength, with excellent corrosion resistance, superior electrical insulation, and good thermal insulation properties.

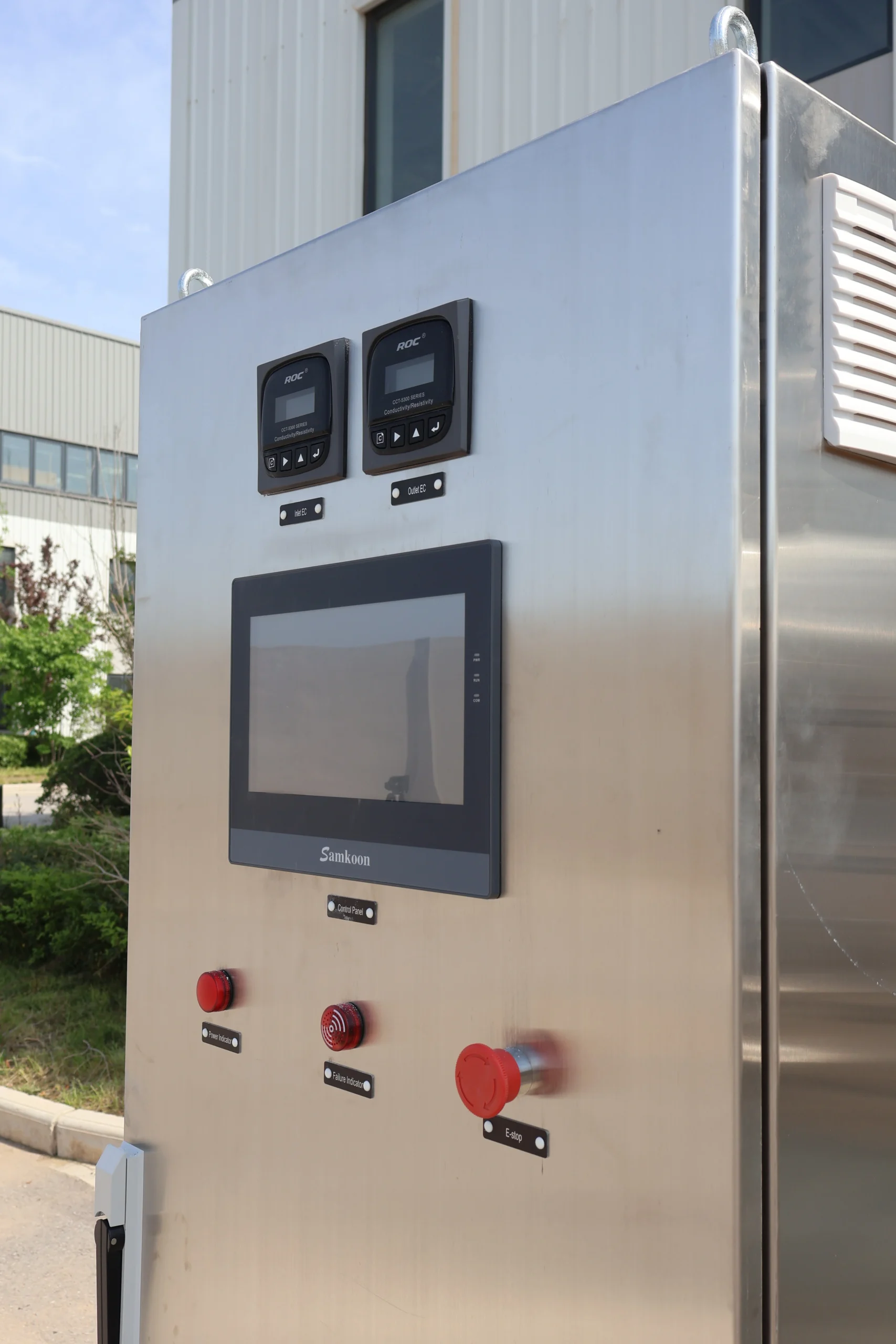

PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process
Product Details
Stainless steel pump
Stainless steel pumps are pumps whose flow parts are made of stainless steel. Due to their excellent corrosion resistance and hygiene standards, they play a crucial role in water treatment equipment.
FRP RO membrane housing
Lightweight and high-strength, with excellent corrosion resistance, superior electrical insulation, and good thermal insulation properties.
PLC Touch Control
PLC Touch operation, simple and easy to operate and monitor whole process
Treat raw water with complex composition to meet the “safe” standards required for reverse osmosis membranes, thereby protecting the expensive RO membranes from damage and ensuring their desalination efficiency and service life.
Contact UsThe function of an RO system is as a high-precision membrane separation technology, driven by pressure, to separate water (solvent) from most dissolved salts, organic matter, bacteria, viruses, and other impurities (solutes) in the water.
Contact UsThe system (such as the RO membrane module) is cleaned by circulating the cleaning fluid through the inside of the equipment without disassembling or moving the equipment.
Contact UsEnable end-to-end monitoring, alerts, and intelligent operation
Contact UsSee Our System in Action
Work Flow Chart
Work Flow Chart
Specifications
Specifications
| Model | JFRO-10T | |||
| Certification | ISO9001 & CE | Membrane Element Model | ESPA2-LD | |
| Recovery Rate | ≥75% | Power Supply | Single-phase: 110/120/220V 50/60Hz | |
| Operating Pressure | 0.5-1.6MPa | Tri-phase: 110/220/380/415V 50/60Hz | ||
| Desalination Rate | 99% | Power Consumption | 16kW | |
| Filtration Accuracy | 0.0001 micron | Control Type | Manual control / Auto control | |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | |||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | |||
Consumables Replacement Guide &Functionality Extensions
RO membrane
It removes the vast majority of impurities in water—including dissolved salts, organic matter, colloids, bacteria, and viruses—thereby purifying and separating the water.
Activated Carbon Filter
By utilizing the vast surface area of activated carbon for adsorption, the primary objective is to remove residual chlorine from the water (with a removal rate of over 99%), while also adsorbing organic compounds, odors, and colorants.
Chemical Dosing
Professional dosing chemicals protect RO membranes by preventing scaling, fouling, and biological contamination, improving system efficiency and extending membrane service life.
Consumables Replacement Guide &Functionality Extensions
Application Fields
JUFU water treatment systems are widely applied across industrial and commercial sectors, delivering reliable, high-quality water for manufacturing, production, and utility applications. Each system can be customized to meet specific water quality and capacity requirements.
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Application Fields
Food & Beverage
Pharmaceutical Industry
Electronics Manufacturing
Boiler Feed Water
Our Certificates
Our Certificates
Craftsmanship & Technology
Each JUFU system is engineered with premium components, advanced manufacturing processes, and strict quality control. From design to final testing, we ensure reliable performance, energy efficiency, and long-term operational stability for industrial water treatment applications.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
Craftsmanship & Technology
Our craftsmanship and technology ensure superior performance, energy savings, and minimal maintenance for all water treatment processes.
We provide fully customized water treatment solutions backed by strong engineering expertise, advanced manufacturing, and global project experience. Every system is designed to match your specific water quality and application requirements.
Yes. Our experienced engineers can provide on-site installation guidance and commissioning services in most countries for equipment designed and manufactured by JUFU.
All JUFU systems include a 12-month warranty. With proper operation and maintenance, our equipment delivers reliable, long-term performance, supported by professional technical assistance whenever needed.
Our focus is on long-term value rather than the lowest price. Premium materials, strict quality control, and reliable performance help reduce maintenance costs and maximize your investment.
Explore our website, visit our factory, watch product videos, or contact our technical team for expert consultation and customized water treatment solutions.
